Sharpstar 2.5" f/4.4 0.8x Reducer and Flattener for FULL FRAME Cameras for Sharpstar 94EDPH Telescope - M48 Camera Connection

Sharpstar 2.5" 0.8x Reducer (f/4.4) and Field Flattener for FULL FRAME Cameras for Sharpstar 94EDPH Telescope - M48 Camera Connection

• Male M74 Connection Thread to the 94EDPH telescope
• Designed for Full Frame cameras
• 360-degree rotation
• Built-in 2" filter thread

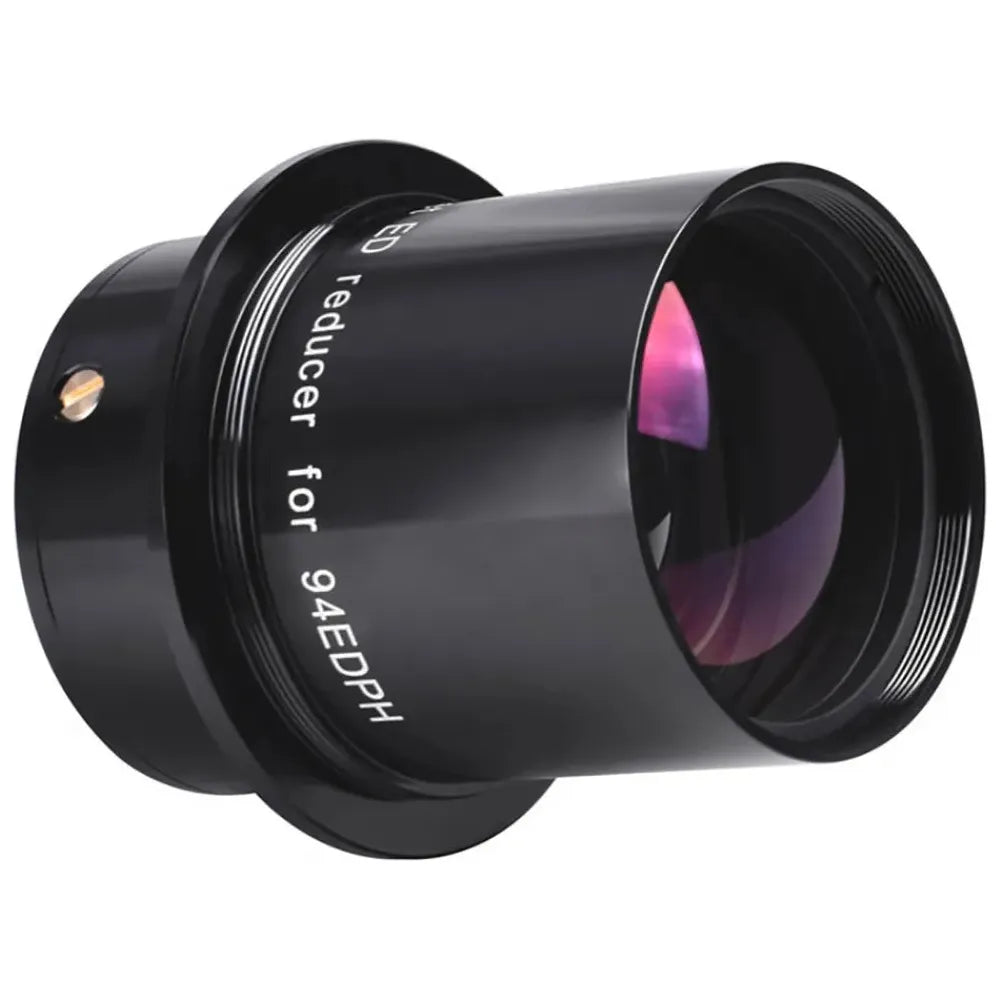

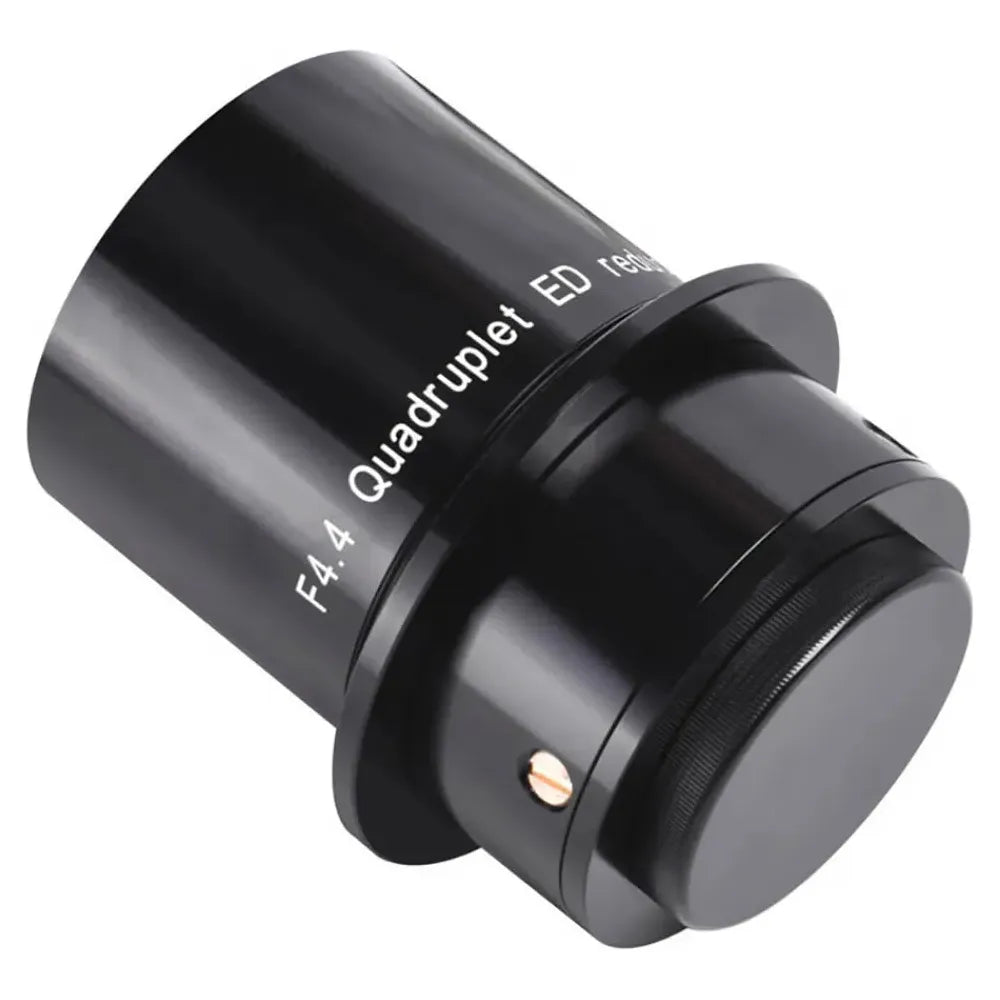

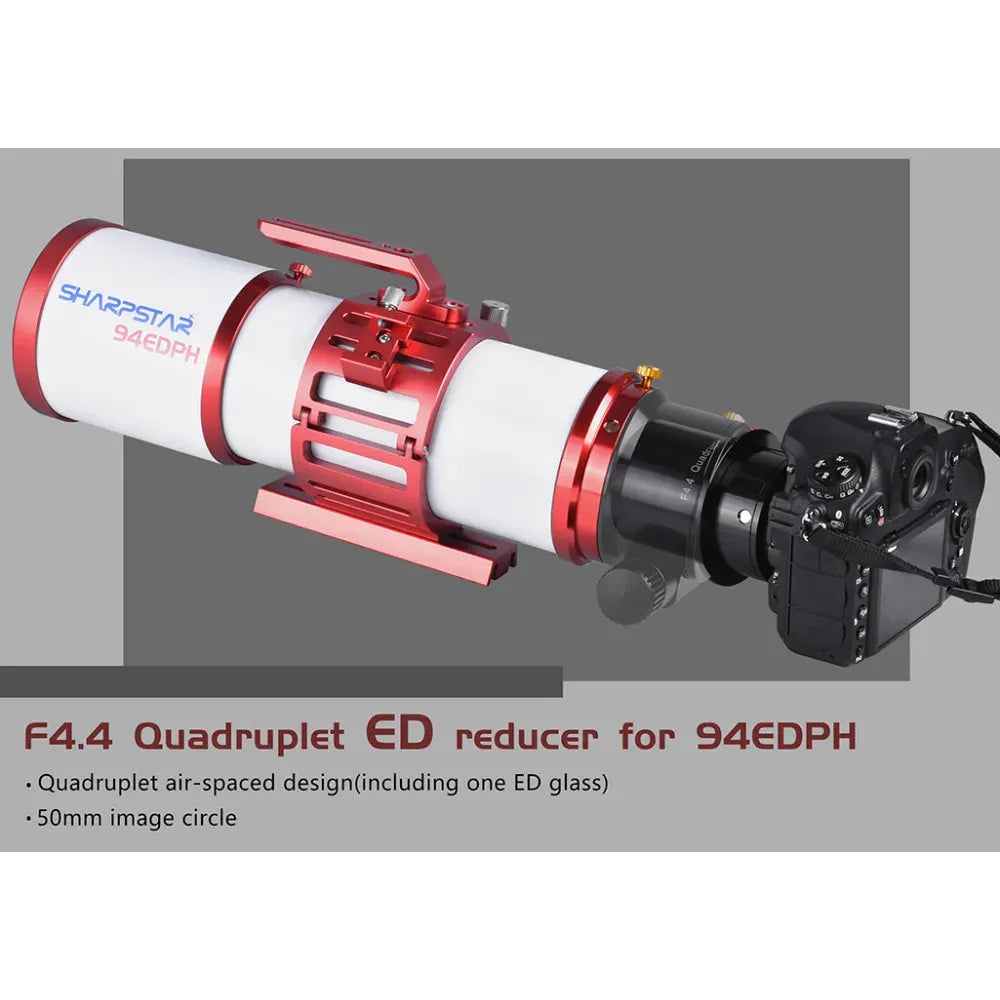

This Reducer/Flattener has been specifically designed for the Sharpstar 94EDPH APO telescopes to achieve a fast f/4.4 focal ratio for full frame imaging.

It will connect to your telescope via a male M74 x 1 thread. For the correct framing, the reducer/flatener features a 360-degree rotation adapter. The backfocus is 55 mm from the M48 thread.

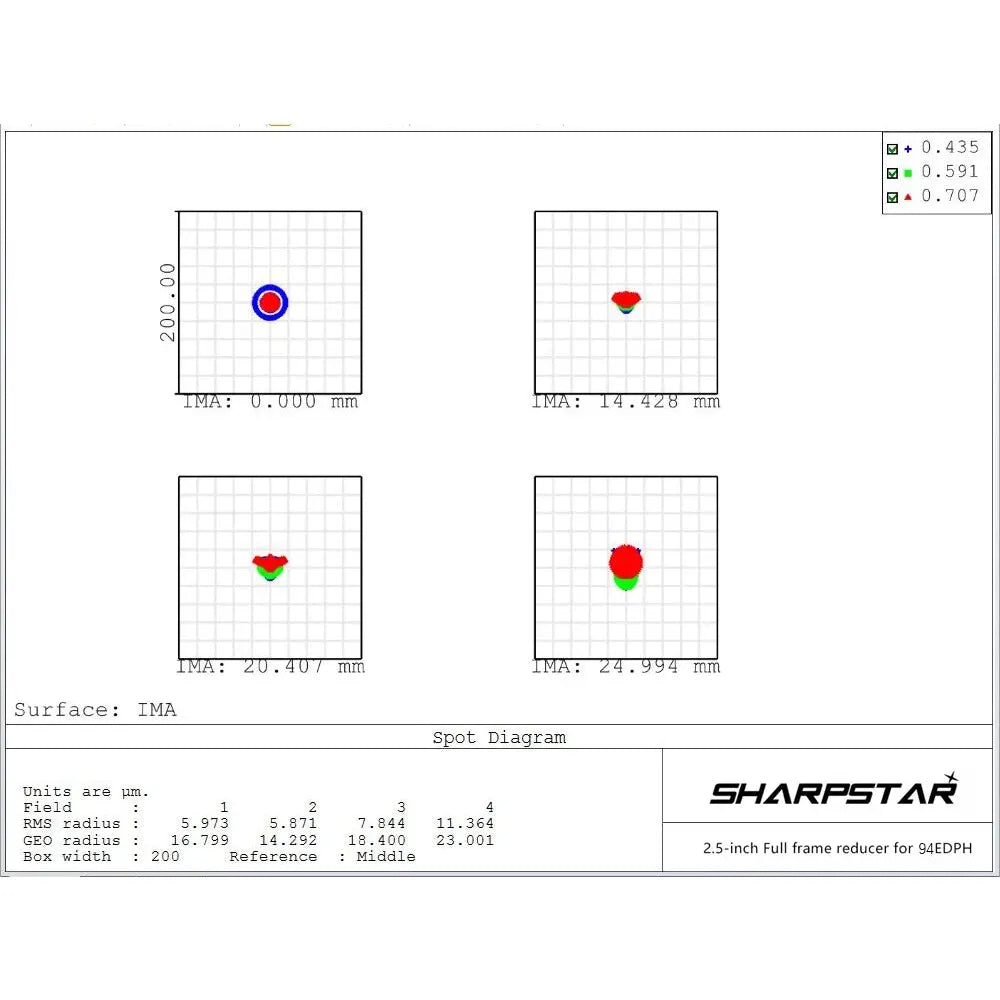

It offers a corrected and fully illuminated field for full frame cameras.

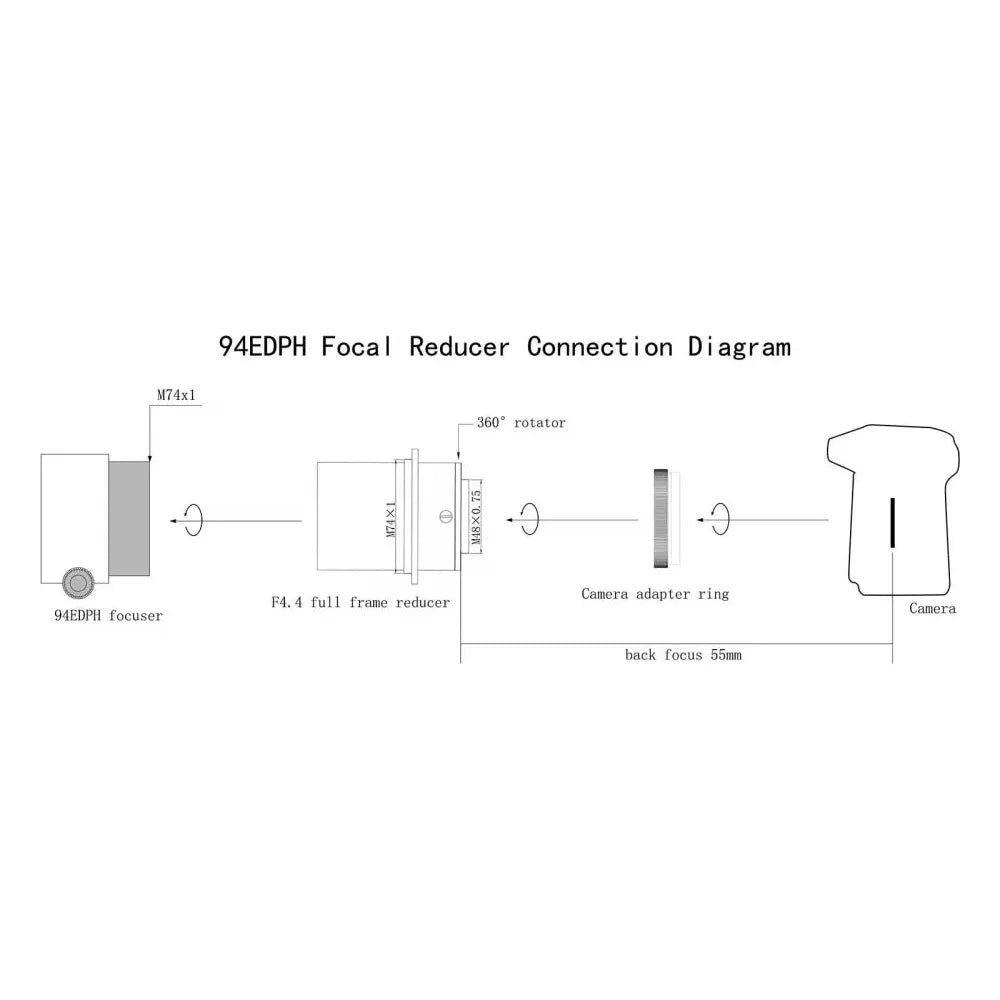

Connections and Back Focus:

• connection to telescope: M74x1 male thread
• connection to camera: M48x0.75 male thread
• Back focus from M48 thread: 55mm

Specifications:

• connection to telescope: M74x1 male thread
• connection to camera: M48x0.75 male thread
• recommended distance from connecting thread to focal plane: 55mm
• focal length reduction: 0.8x

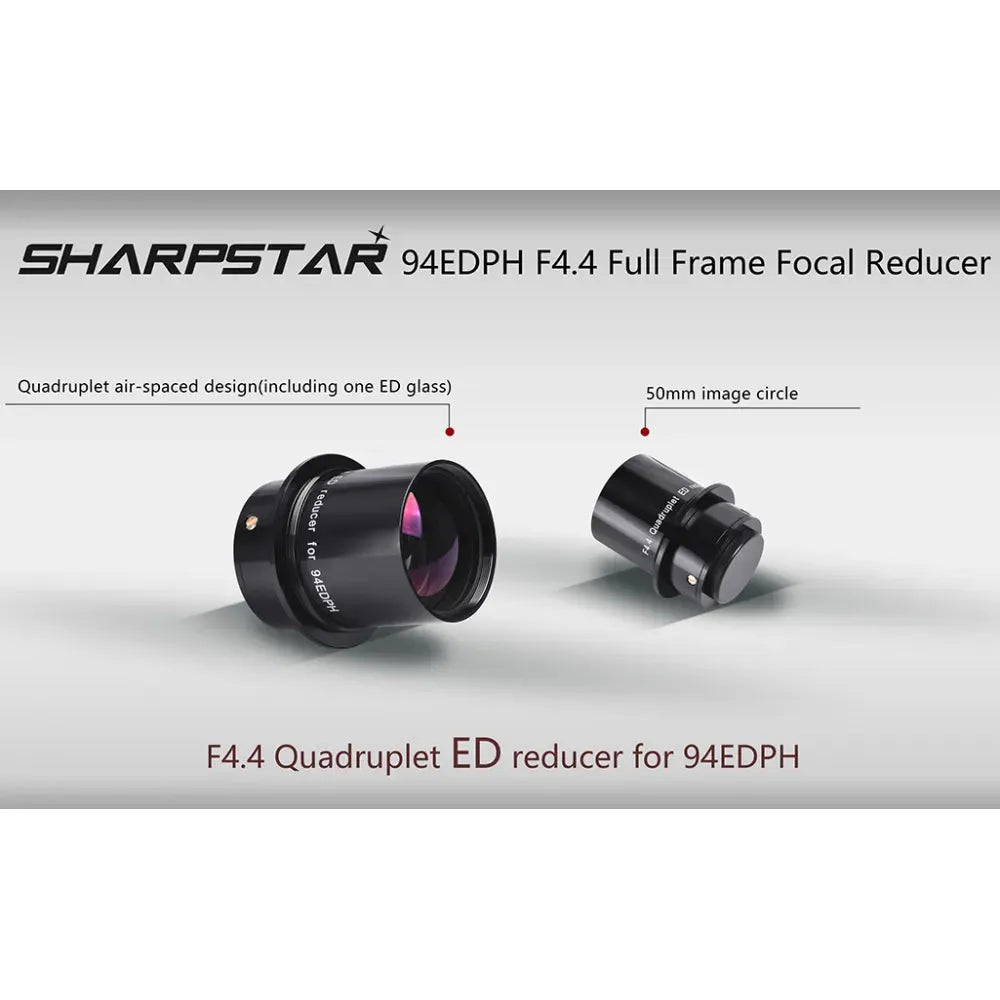

• lenses: 4 lenses fully multicoated (one ED lens included)
• fully corrected and illuminated field: 50mm)
• length: 105mm
• diameter: 88mm (66mm without the collar)
• weight: 670 g
