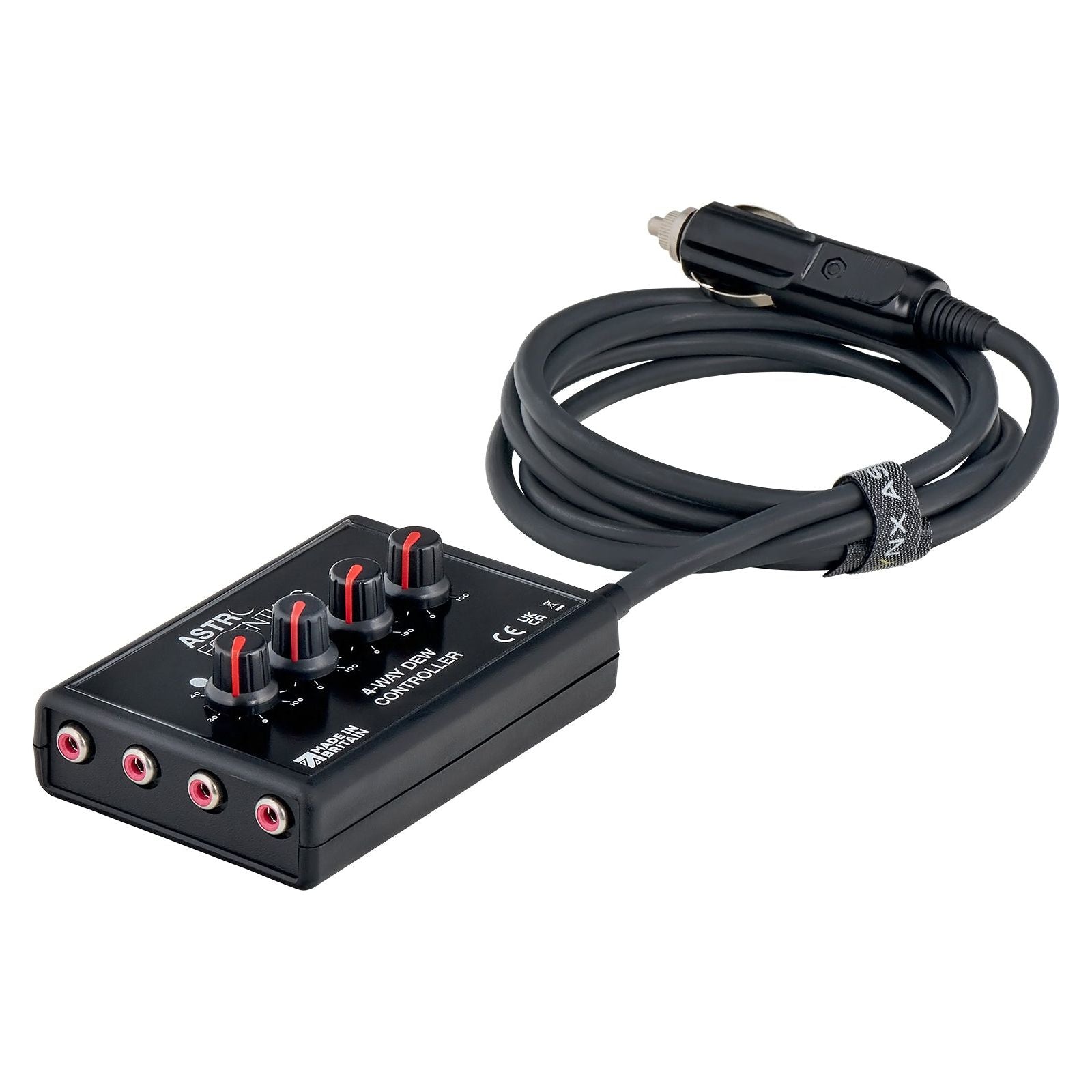

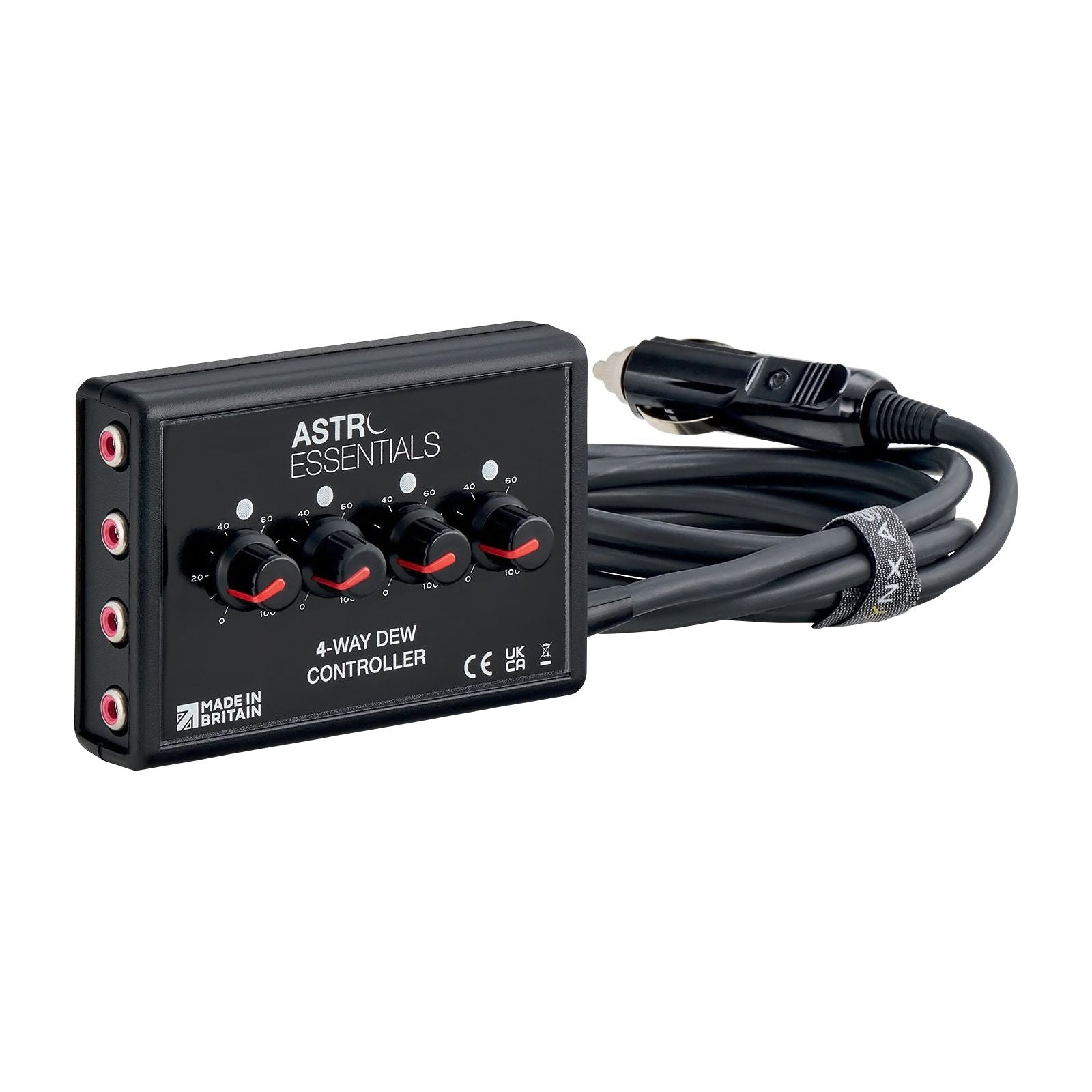

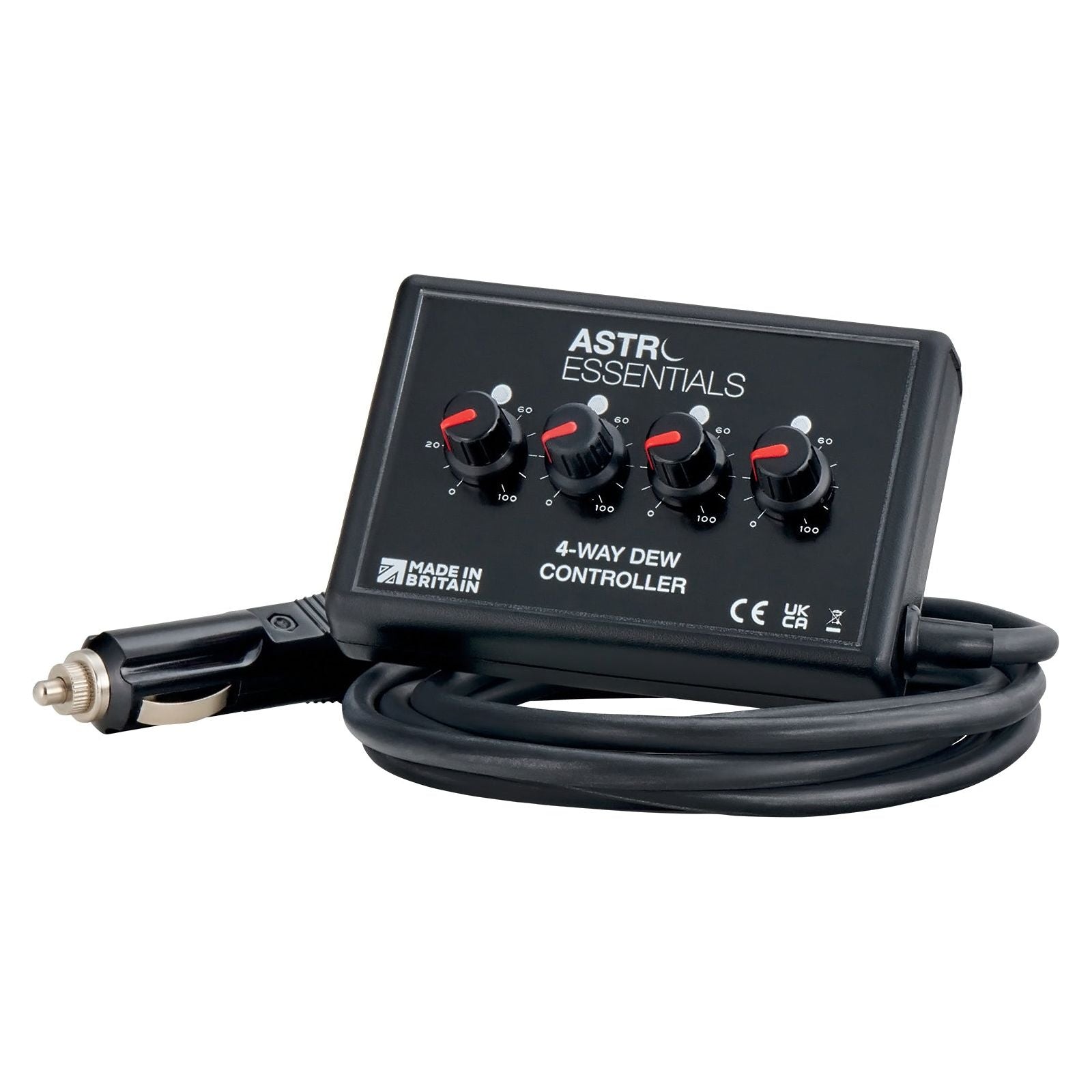

Astro Essentials Dew Controller 4-Port

Astro Essentials Dew Controller 4-Port – Astronomy Enthusiast Gear

Brief Overview

The Astro Essentials Dew Controller 4-Port is a must-have for astronomy enthusiasts looking to maintain optimal clarity in their observations. Designed and manufactured in the UK, it enables you to connect and control output to four individual heater strips, ensuring your equipment stays dew-free. Featuring robust construction and user-friendly design, it’s an essential tool for any serious stargazer.

Key Features

• Four-Channel Control: Connects up to four individual dew heater strips.
• High Power Output: Supports up to 8 Amps total power output.
• Flexible Silicone Cable: 2m cold-resistant, super flexible cable.
• Versatile Compatibility: Works with most heater strips from major manufacturers.
• User-Friendly Design: Includes cigarette-lighter type plug with LED power indicator.
• Durable Construction: Hard-wearing black ABS enclosure.
• Warranty: Comes with a 2-year warranty.

Detailed Description

The Astro Essentials Dew Controller 4-Port is engineered to provide reliable dew prevention for your valuable astronomy equipment. Each of its four RCA / Phono ports is individually controllable, allowing you to adjust the output from 0-100% for each connected heater strip. The device is built to handle up to 8 Amps of total power, but remember to ensure that your power supply can deliver sufficient power for your needs, keeping in mind other equipment like mounts and cameras.

The controller includes a high-quality, super flexible 2m silicone cable rated to 15 Amps, which remains soft and easy to manage even at sub-zero temperatures. It comes with a cigarette-lighter type plug rated to 15 Amps, fitted with an 8 Amps fuse, and features a red LED power indicator for easy monitoring.

Important: Do not exceed a total power output of 8 Amps.

Benefits

• Customisable Heating: Individual controls for each port ensure tailored settings for different equipment.
• Durable and Reliable: Built with high-quality materials to withstand harsh conditions.
• Easy to Use: Simple plug-and-play design with clear power indicators.

Specifications

Power Input

• Requires a DC centre positive power supply.
• 2m flexible silicone cable rated to 15 Amps.
• Cigarette-lighter type plug rated to 15 Amps, fitted with an 8 Amps fuse, including a red LED power indicator.
• Minimum Voltage 10V, Maximum Voltage 15V (recommended 12-13.8V).
• Fitted with strain relief to prevent damage.

Dew Heater Outputs

• RCA / Phono style connector, tip positive.
• Supports most dew heater tapes from major manufacturers.
• 2.5 Amps output continuous per channel (max 3 Amps surge).

Enclosure / Box

• Durable black ABS enclosure.
• Red LED power indicator for each channel, with brightness varying according to power setting.
• Velcro backed with a matching sticky velcro pad for easy attachment.

Power Supply Requirements

• The power supply must be centre positive polarity and capable of supplying the required Current (Amps) and Voltage.

What's in the Box

• Astro Essentials Dew Controller 4-Port
• 2m flexible silicone cable
• Cigarette-lighter type plug with 8 Amps fuse
• User Manual (Downloadable PDF Manual)

Important Notes

The power supply must have the correct centre-positive polarity and be capable of supplying the required Current (Amps) and Voltage.

Determine the Amps required for each item plugged into the dew controller. When added together, their total must not exceed 3 Amps. If this information is unavailable, please contact your device manufacturer.

Don’t wait – elevate your stargazing experience with the Astro Essentials Dew Controller 4-Port today!
