BRESSER Guiding Kit AR90/500

BRESSER Guiding Kit AR90/500

Product Highlights

• Universal BRESSER Guiding Kit
• Includes guiding-scope, guiding-camera, and dovetail clamp
• Perfect for long exposure astrophotography with autoguiding
• Aperture/focal length of guiding-scope: 90mm / 500mm
• Screw set for Messier/ES handle included
• Compatible with various telescopes
• Aperture solar filter for solar observing included

Product Information

The BRESSER Guiding Kit AR90/500 is the ultimate solution for seamless long-term astrophotography. This universal tracking kit is designed for easy assembly and handling, consisting of a guiding scope, tracking camera, and a dovetail clamp. With this setup, you can effortlessly start long-exposure photography with active tracking control (autoguiding).

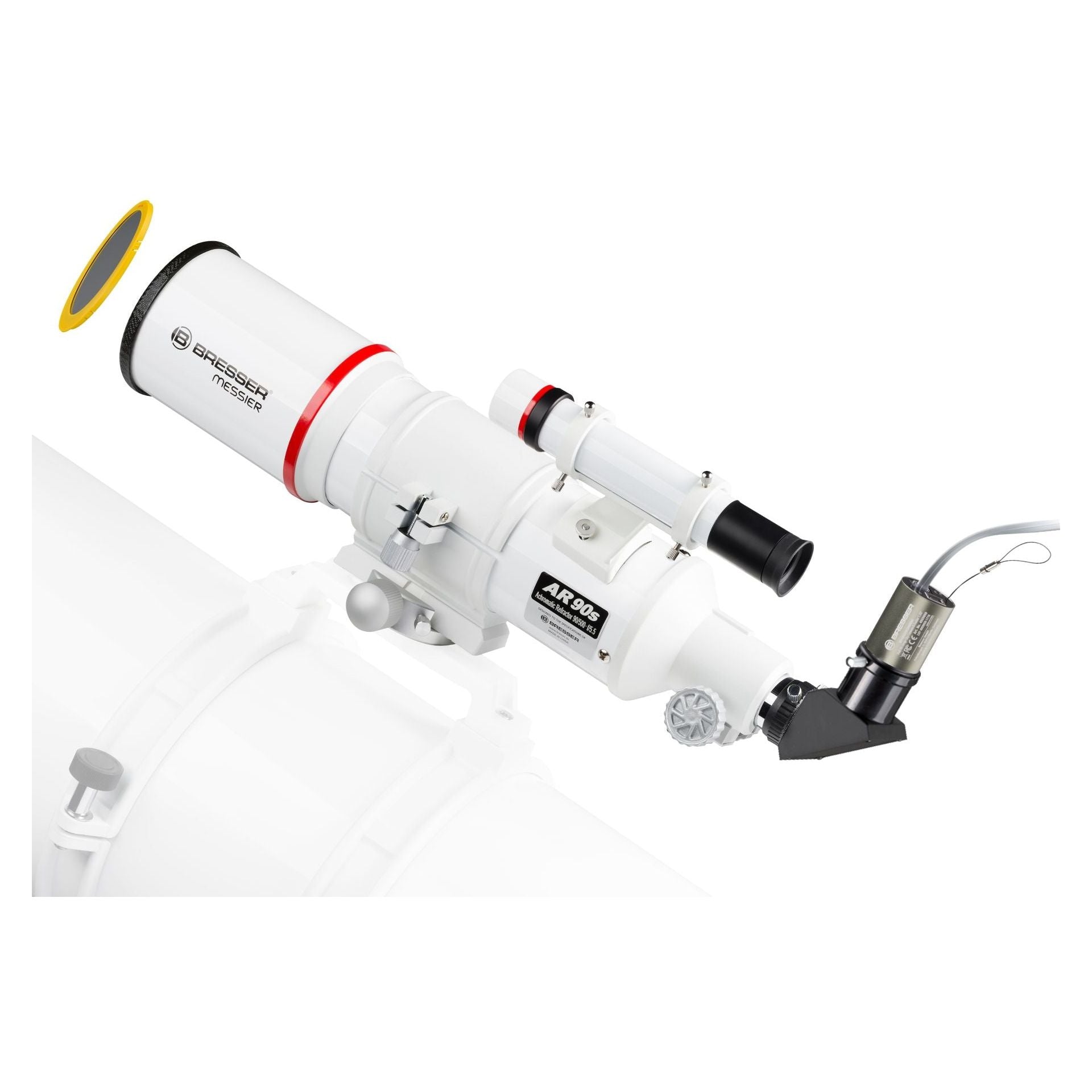

Simply mount the dovetail clamp with the provided screws onto the carrying handle of BRESSER Messier and EXPLORE-SCIENTIFIC telescopes. The AR90/500 guide scope and tracking camera can be securely fixed parallel to the main telescope. Connect the tracking camera to the ST-4 compatible autoguider socket on your telescope mount, then link it via USB to your Windows computer. Install the camera drivers and any preferred autoguider software, and you're ready for astrophotography.

The dovetail clamp includes 2 x 6mm countersunk holes (35mm hole spacing) and 3 additional 1/4" photo-tapped holes for versatile adaptation to various telescopes and adapter plates. The tracking camera is ideal for capturing both planetary and deep-sky objects. For a detailed description of the tracking camera, refer to BRESSER article number 4959050.

NOTE: Mount the camera on the telescope using the diagonal mirror to ensure proper focusing.

NOTE: Autoguider software is not included. You can use PHD Guiding, GuideDog, MetaGuide, GuideMaster (freeware), or AstroArt, MaxIm DL (chargeable).

DOWNLOAD PHD-Guiding

DOWNLOAD GuideDog

Key Features

• Universal Compatibility: Fits BRESSER Messier, EXPLORE-SCIENTIFIC, and many other telescopes.
• Easy Assembly: Simple to mount and set up with included screws and dovetail clamp.
• Advanced Tracking Camera: Suitable for capturing planets and deep-sky objects.
• Comprehensive Package: Includes guiding scope, guiding camera, dovetail clamp, and necessary cables.
• Versatile Adaptation: Multiple mounting options for various telescopes and adapter plates.
• Solar Observing: Comes with an aperture solar filter for safe solar observations.

Specifications / Additional Information

• Aperture of Guiding-Scope: 90mm
• Focal Length of Guiding-Scope: 500mm
• Colour: White
• Material: Aluminium

In the Box

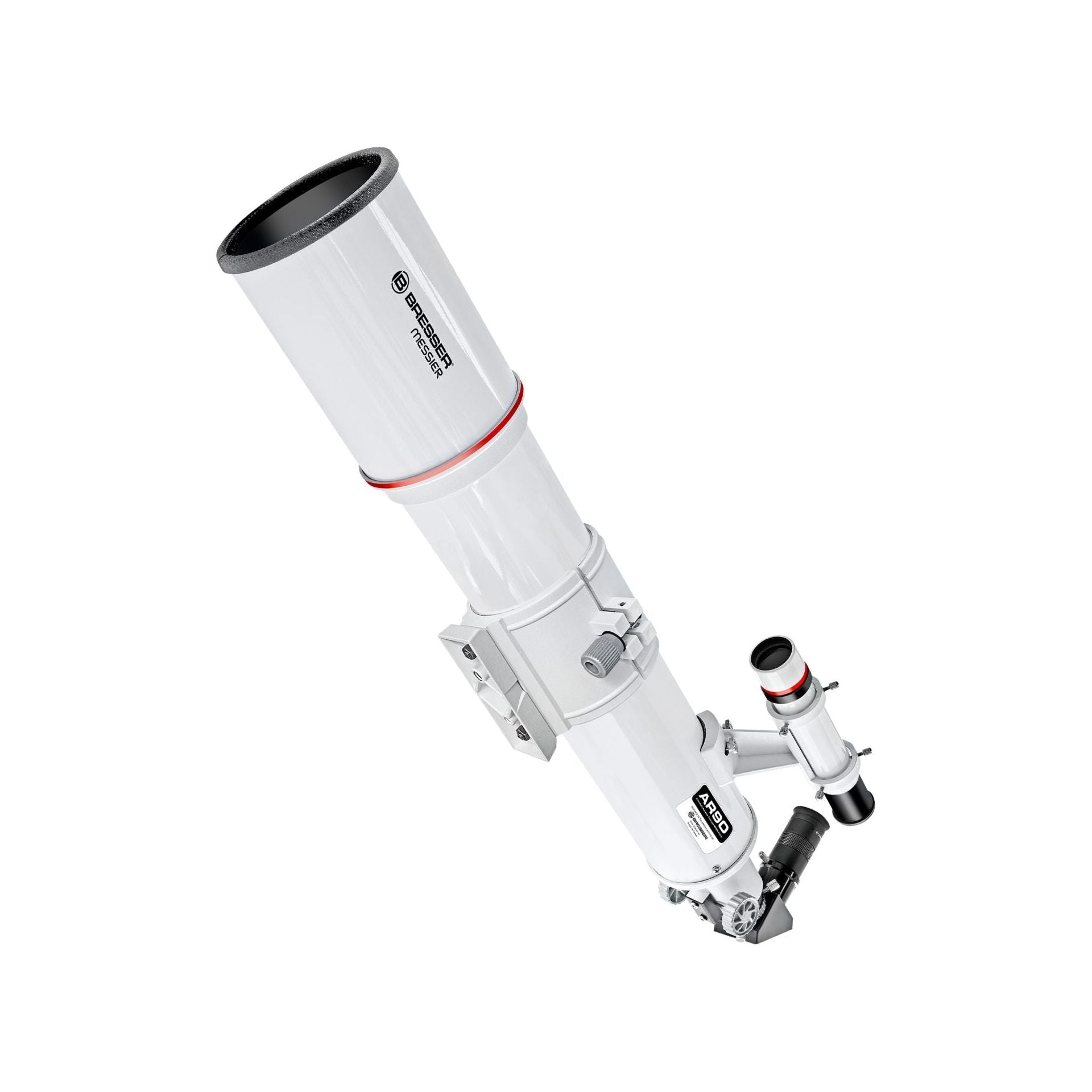

• Guiding-scope BRESSER Messier AR90/500 (Art.Nr. 4890500)

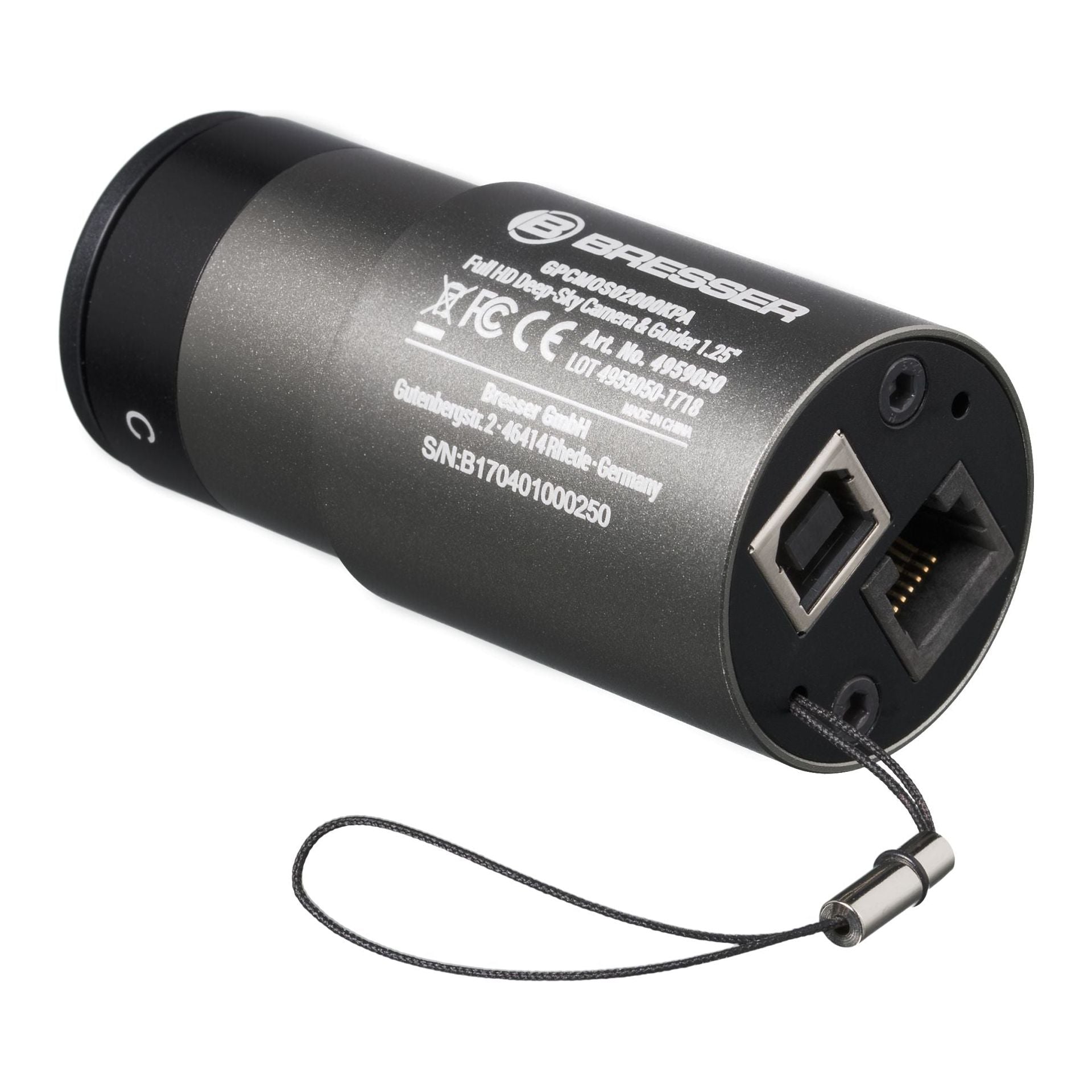

• Guiding-camera BRESSER GPCMOS02000KPA color (Art.Nr. 4959050)

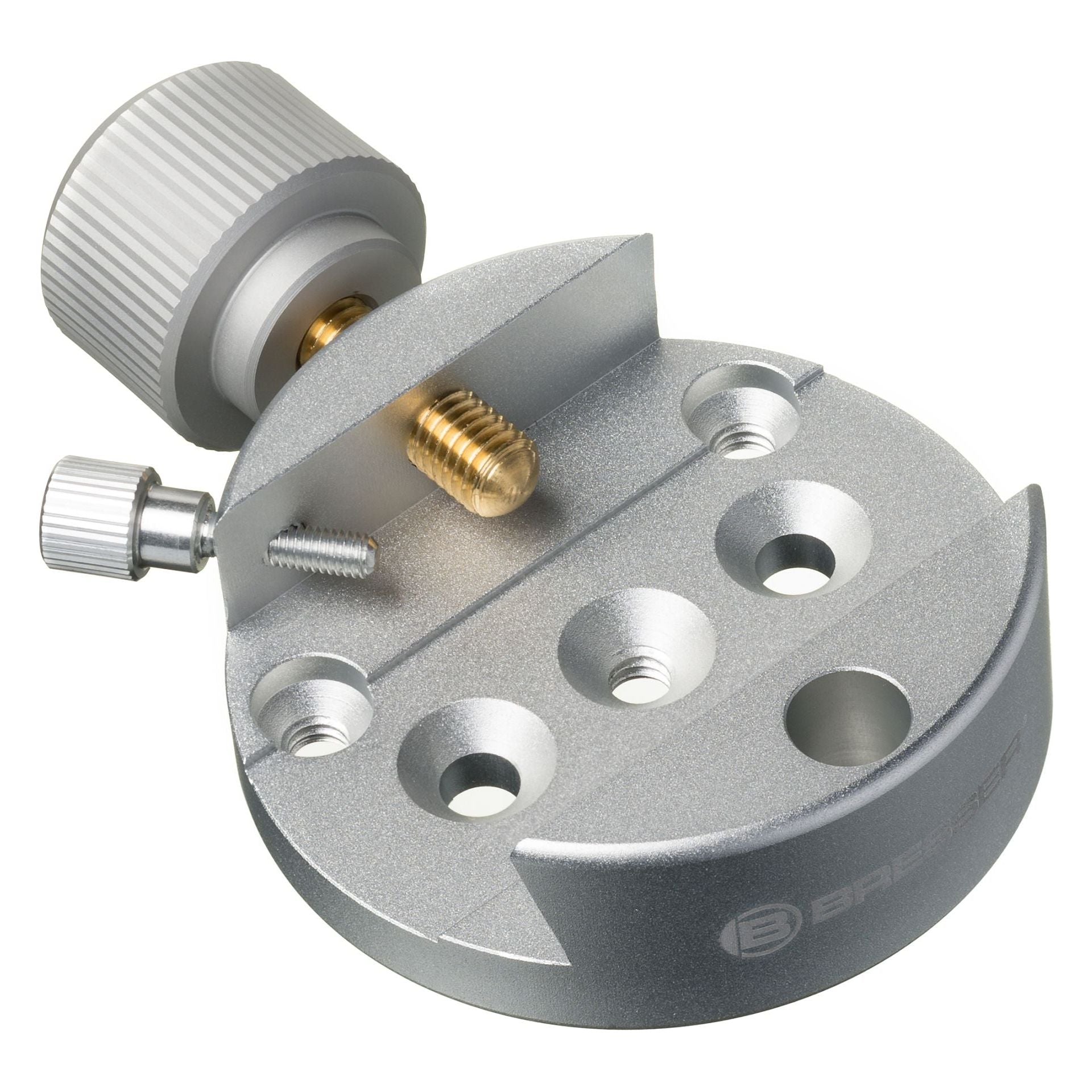

• Dovetail-clamp for Messier/ES/GP/Vixen (Art.Nr. 4910220)

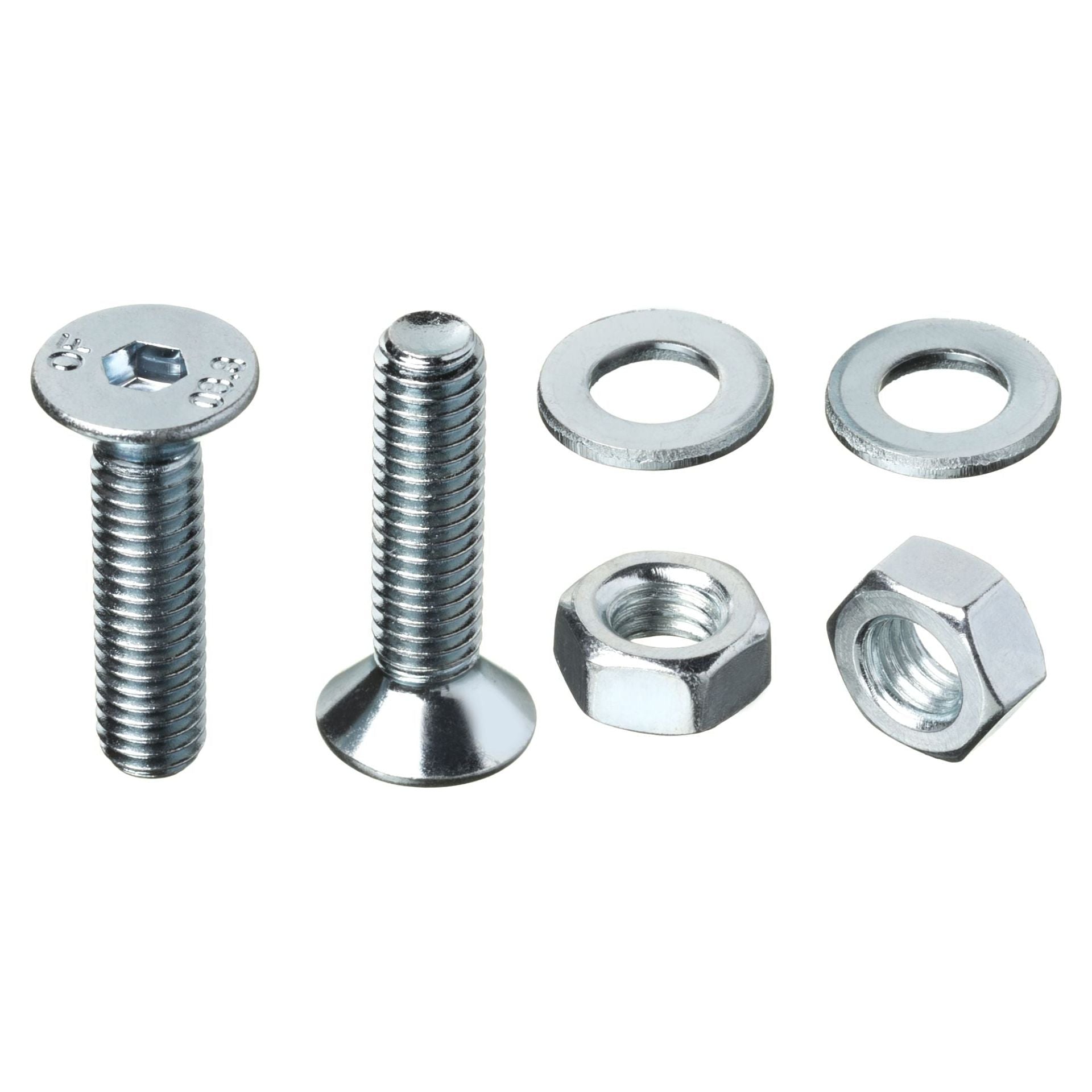

• Screw-set for Messier/ES handle

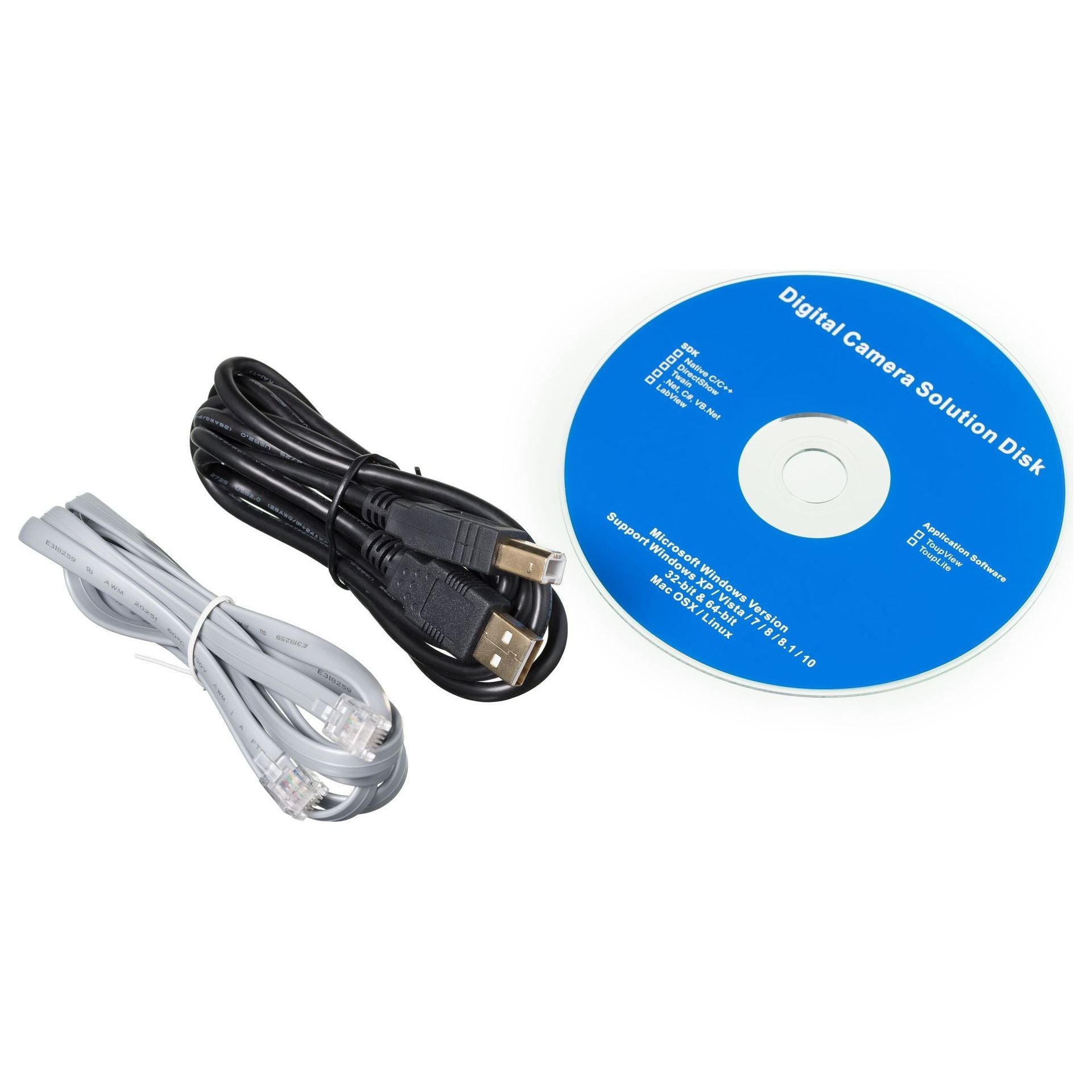

• USB 2.0 cable (camera to computer)
• ST-4 cable (camera to telescope mount)
• Camera driver software + ASCOM driver
• Professional ToupSky imaging software
• Aperture solar filter for solar observing

Conclusion

The BRESSER Guiding Kit AR90/500 is your go-to solution for long-exposure astrophotography. With its comprehensive kit and easy assembly, you'll be capturing stunning celestial images in no time. Compatible with a variety of telescopes, this guiding kit is designed to enhance your stargazing experience. Ready to explore the cosmos? The BRESSER Guiding Kit AR90/500 has got you covered.
