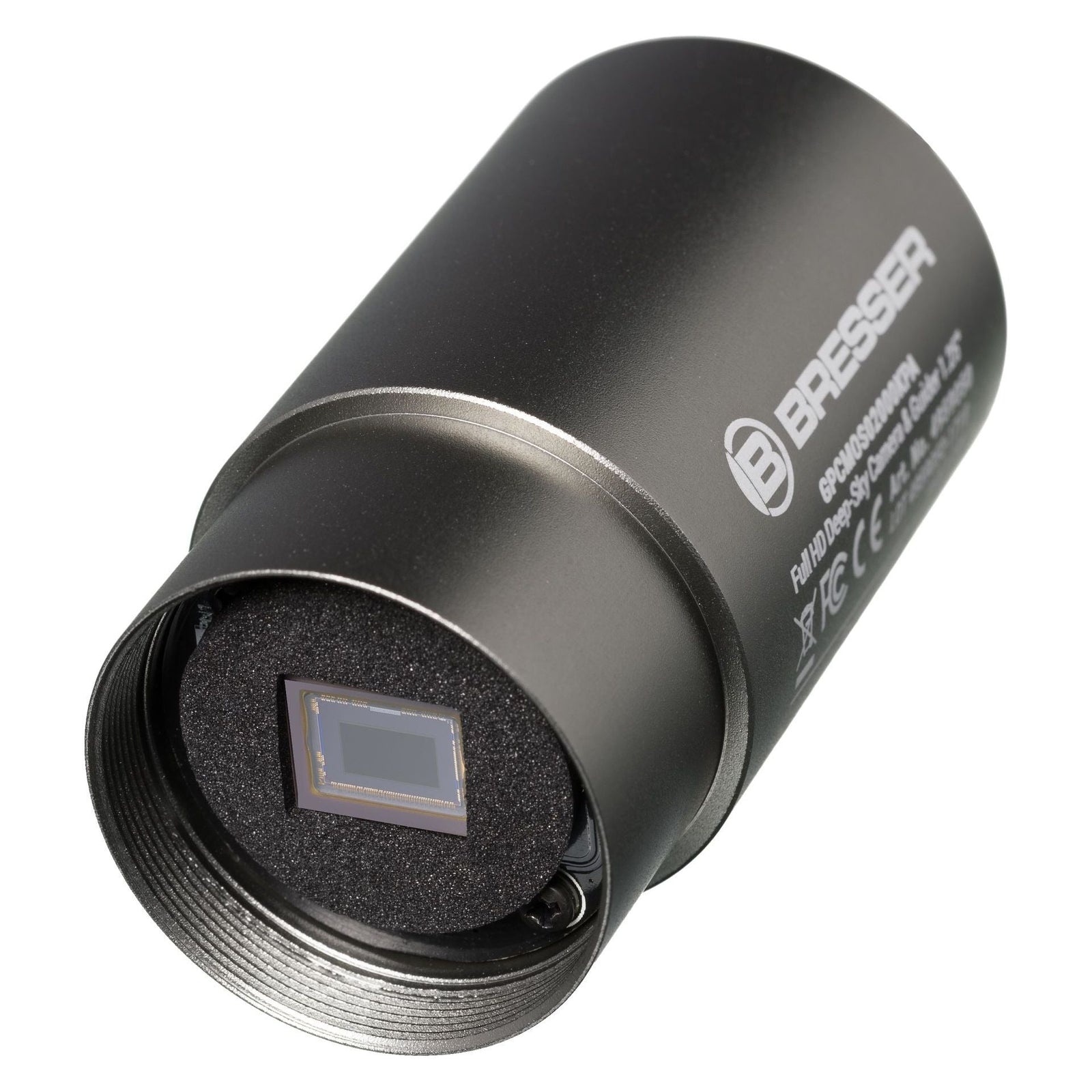

BRESSER Full HD Deep-Sky Camera & Guider 1.25"

BRESSER Full HD Deep-Sky Camera & Guider 1.25"

Product Highlights

• Multi-purpose camera for astrophotography and high-accuracy autoguiding
• Equipped with SONY IMX290 CMOS color sensor
• Suitable for planet and deep-sky imaging
• Full HD resolution (1936 x 1096 pixels)
• ST4 autoguider function for precise tracking
• Includes professional ToupSky imaging software
• Very low noise level with high light sensitivity
• Easy connection via 1.25-inch plug-in sleeve with filter thread
• ASCOM driver included; USB 2.0 PC connection
• Compatible with Windows 10 and 11

Product Information

The BRESSER Full HD Deep-Sky Camera & Guider is an exceptional tool for astrophotographers and astronomers. This versatile camera is perfect for capturing the beauty of planets and deep-sky objects such as galaxies, nebulae, and star clusters. Its built-in ST-4 port ensures accurate autoguiding, making long exposure photography straightforward and precise.

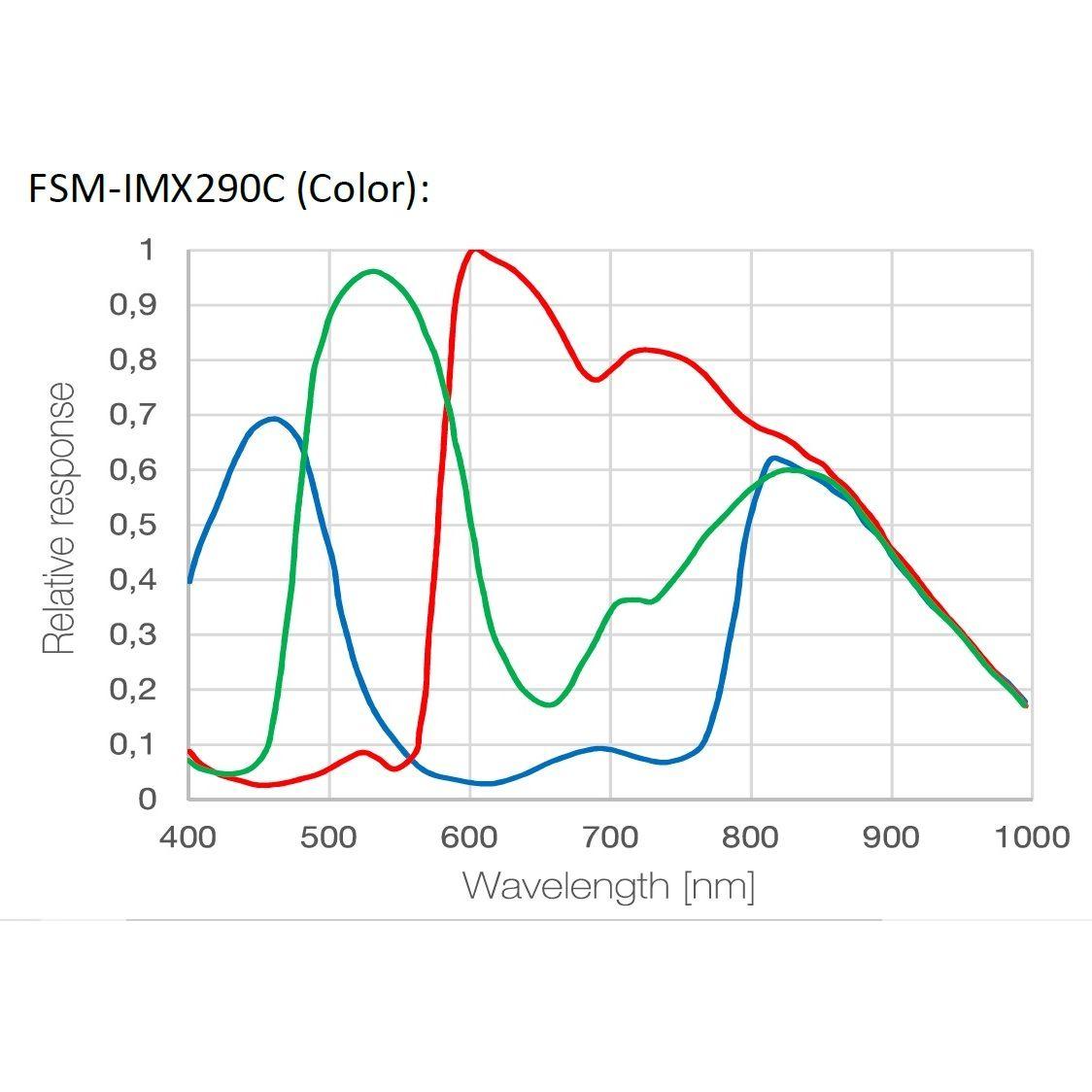

The camera features a backlit SONY IMX290 CMOS sensor renowned for its high light sensitivity, allowing the detection of faint deep-sky objects without active cooling. With an impressive quantum efficiency of 77% at a 533 nm wavelength, this sensor outperforms many traditional CMOS sensors.

Key Features

• High-Resolution Imaging: Capture photos and videos in Full HD (1936 x 1096 pixels).
• Autoguiding Functionality: The ST4 autoguider function ensures accurate tracking for long exposure photography.

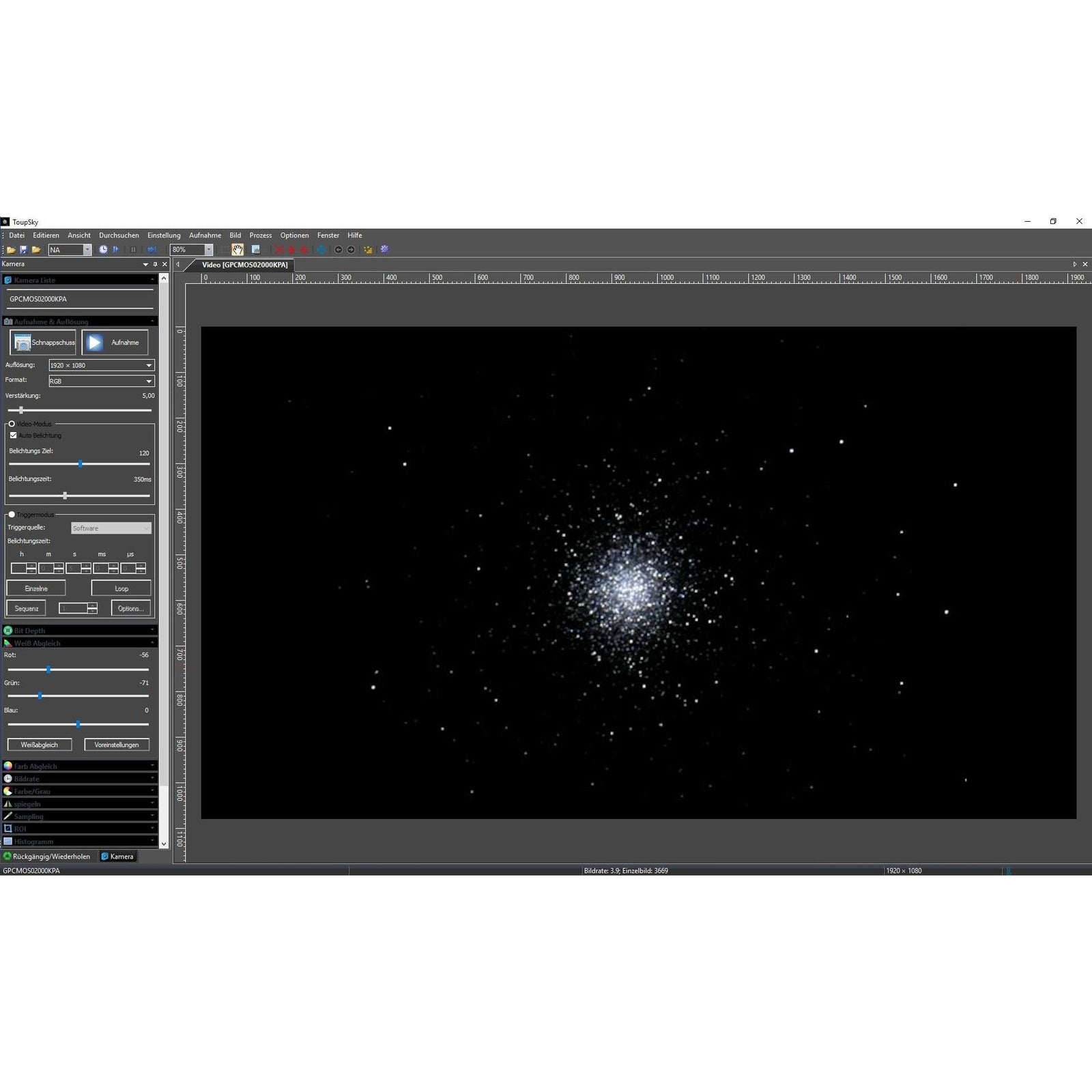

• Professional Software: Includes ToupSky imaging software for comprehensive video and image processing.
• High Light Sensitivity: The SONY CMOS sensor allows for short exposure times with very low noise levels.

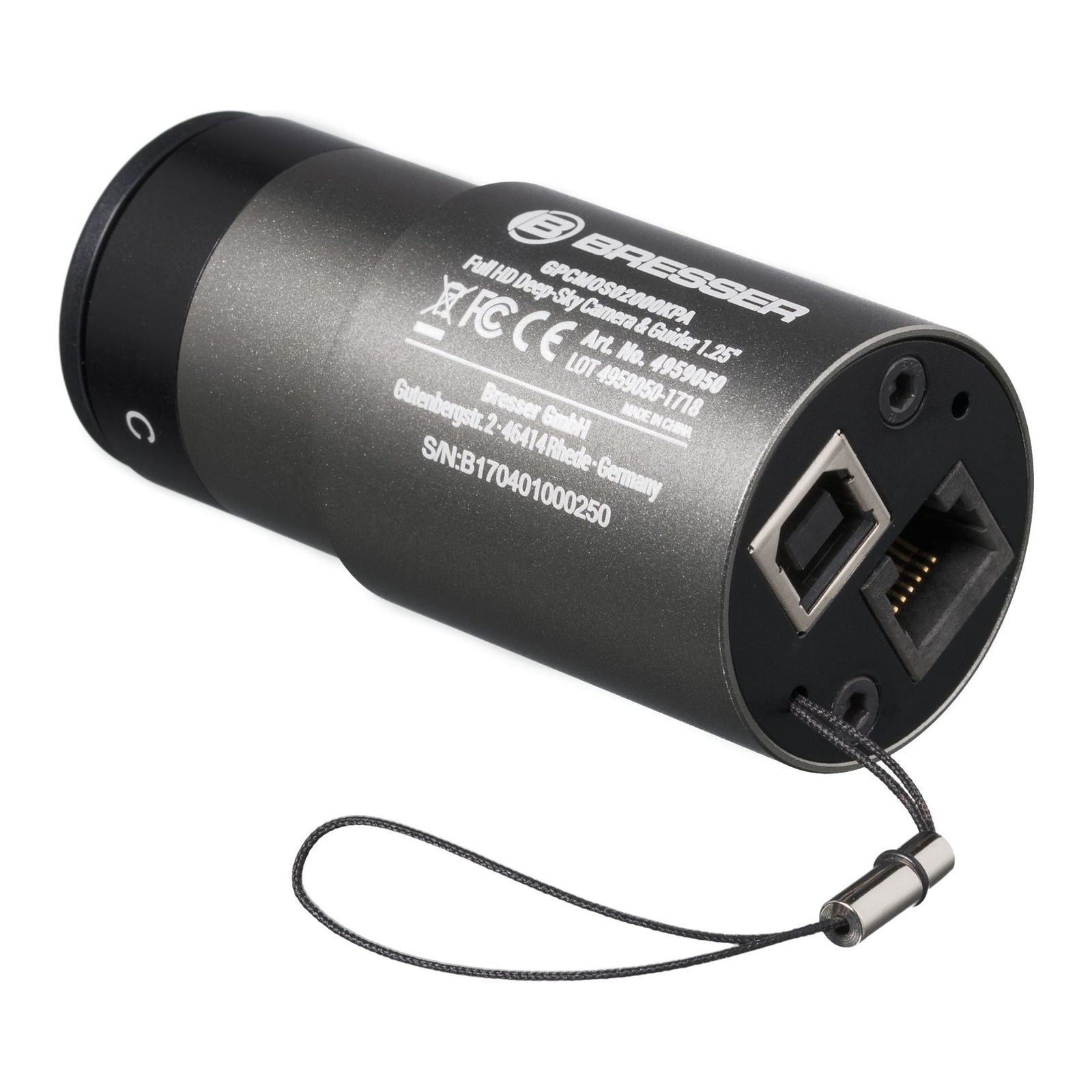

• Easy Connectivity: Connects easily via a 1.25-inch plug-in sleeve with a filter thread. USB 2.0 interface for PC connection.
• Versatile Compatibility: Works with all guiding telescopes or off-axis guiders that accept a 1.25" tube or C-mount adapter thread.
• Windows Compatibility: Compatible with Windows 10 and 11 operating systems.

Specifications / Additional Information

• Camera Type: BRESSER / Touptek GPCMOS02000KPA color
• Sensor: SONY IMX290 CMOS color, backlit
• Image & Video Size: Full HD 1936 x 1096 pixels (video 15 FPS)
• Sensor Size: 5.6 x 3.1 mm
• Pixel Size: 2.9 µm x 2.9 µm
• Bit Depth: 8/12 switchable
• Exposure Times: 66µs to 16 minutes
• Binning: Yes, 2x2
• Megapixel: 2.1 MP
• ST-4 Compatible Autoguider: Yes
• Housing Material: CNC milled aluminium
• Camera Tube Diameter: 1.25 "(31.7 mm)

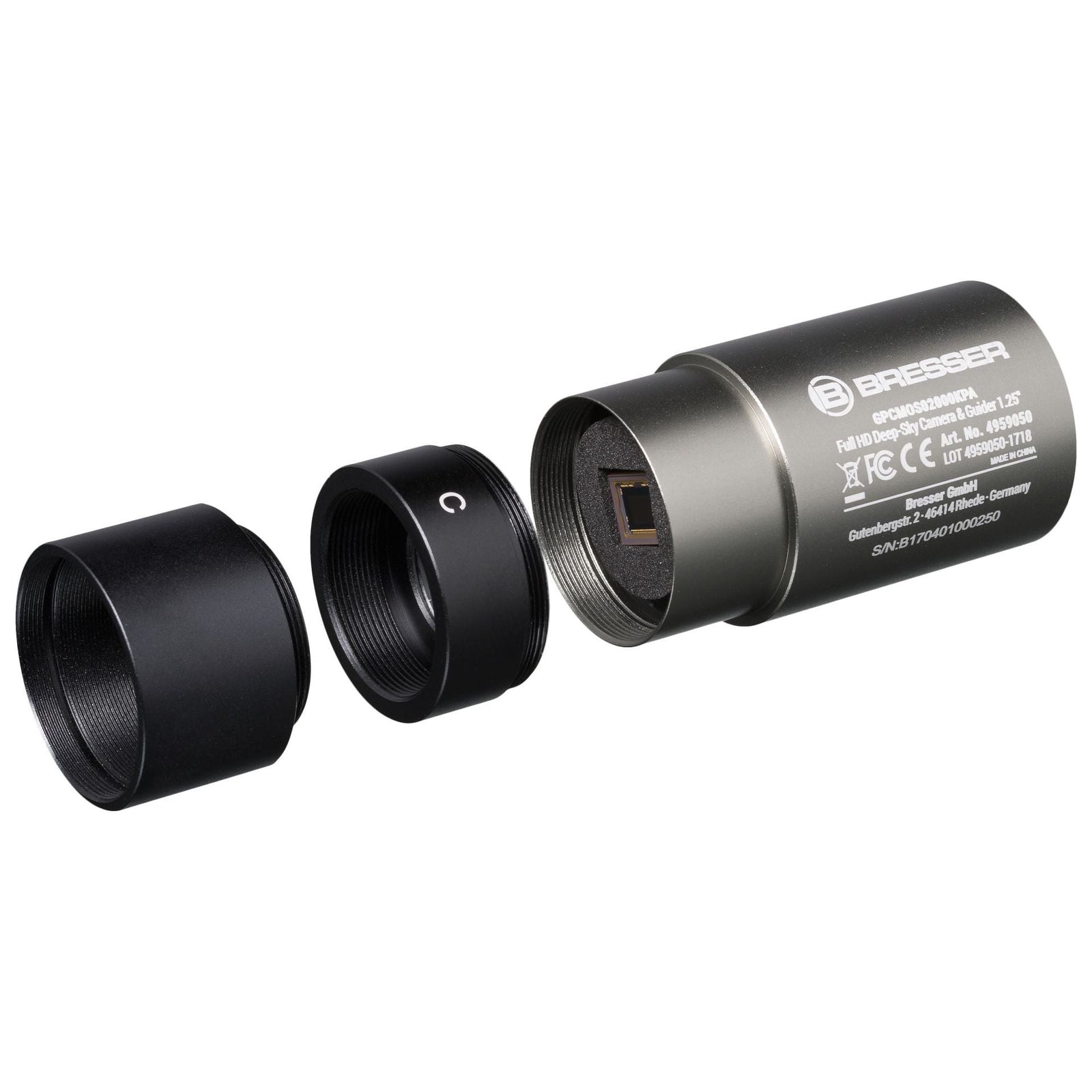

• Camera Connection Thread: C-mount + 1.25" filter thread
• Computer Interface: USB 2.0
• No IR Cut Filter Installed
• Field of View (for different focal lengths in mm):
• • 400mm - 48.2 'x 27.3'
  • 500 mm - 38.6 'x 21.8'
  • 600 mm - 32.1 'x 18.2'
  • 700 mm - 27.5 'x 15.6'
  • 800 mm - 24.1 'x 13.6'
  • 900 mm - 21.4 'x 12.1'
  • 1000 mm - 19.3 'x 10.9'
  • 1250 mm - 15.4 'x 8.7'
  • 1500 mm - 12.9 'x 7.3'
  • 1750 mm - 11.0 'x 6.2'
  • 2000 mm - 9.6 'x 5.5'

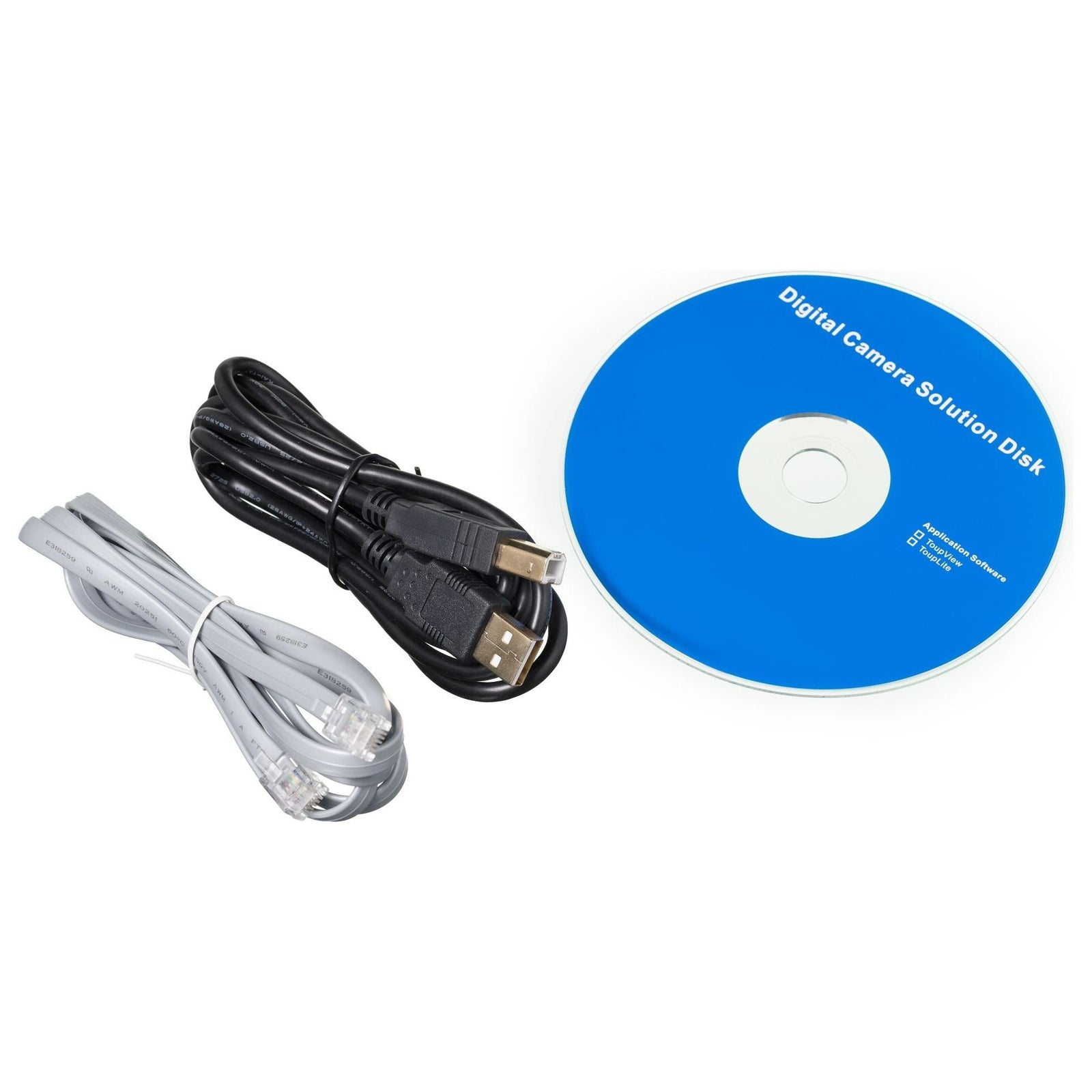

In the Box

• Full HD camera
• C-mount adapter
• USB 2.0 PC connection cable (200 cm)
• Interface cable for ST-4 autoguider port (150 cm)
• Dust cap for camera tube
• Software CD
• Colour: Green
• Material: Aluminium

Conclusion

The BRESSER Full HD Deep-Sky Camera & Guider is a must-have for any serious astrophotographer. Its high sensitivity, combined with professional software and easy connectivity, ensures that you can capture stunning images with precision and ease. Whether you're photographing planets or deep-sky objects, this camera delivers exceptional performance.

For more information and to download essential software and drivers, visit the links provided:

PHD2-Guiding

GuideDog

Latest Camera Software and Drivers

INDI Driver
