Sharpstar Color Carbon Mark III Harmonic Drive German Equatorial Mount - up to 18kg - 26kg Payload

.

Sharpstar Color Carbon Mark III Harmonic Drive German Equatorial Mount - up to 18kg - 26kg Payload

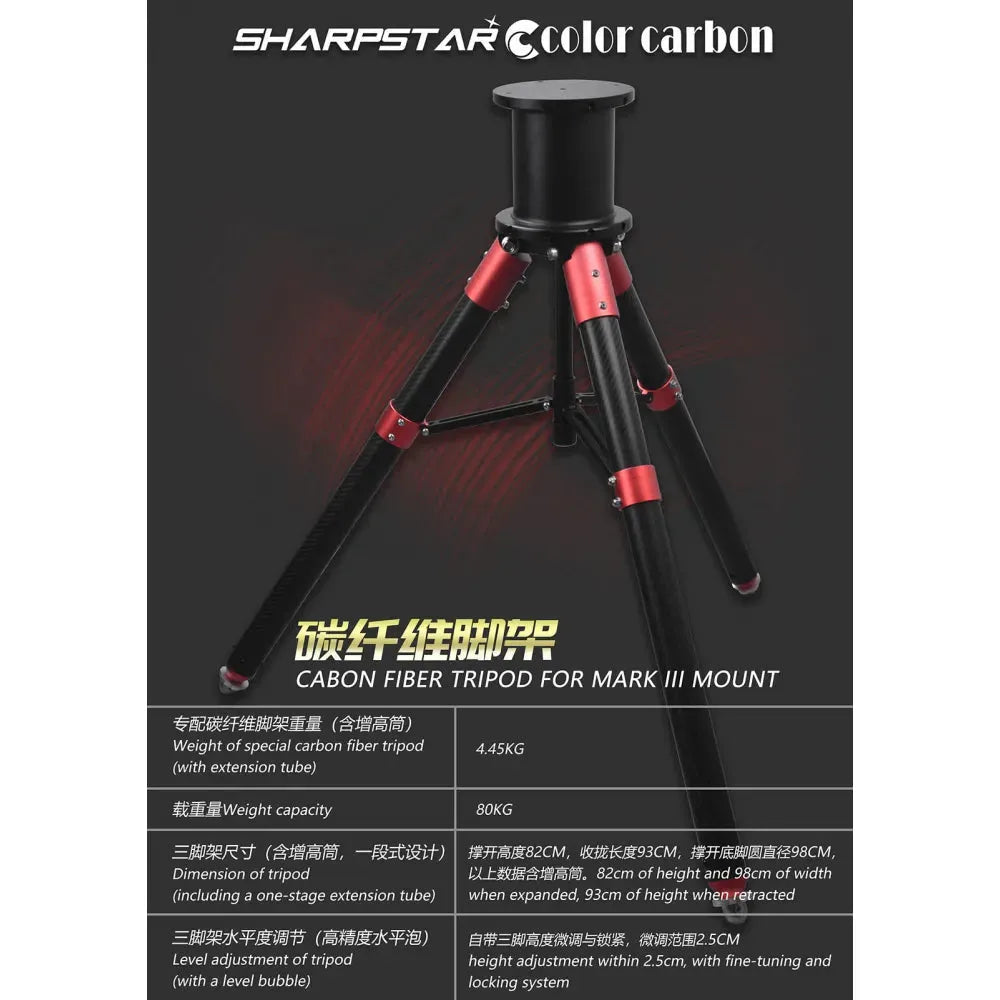

A CARBON FIBER TRIPOD IS AVAILABLE SEPARATELY...

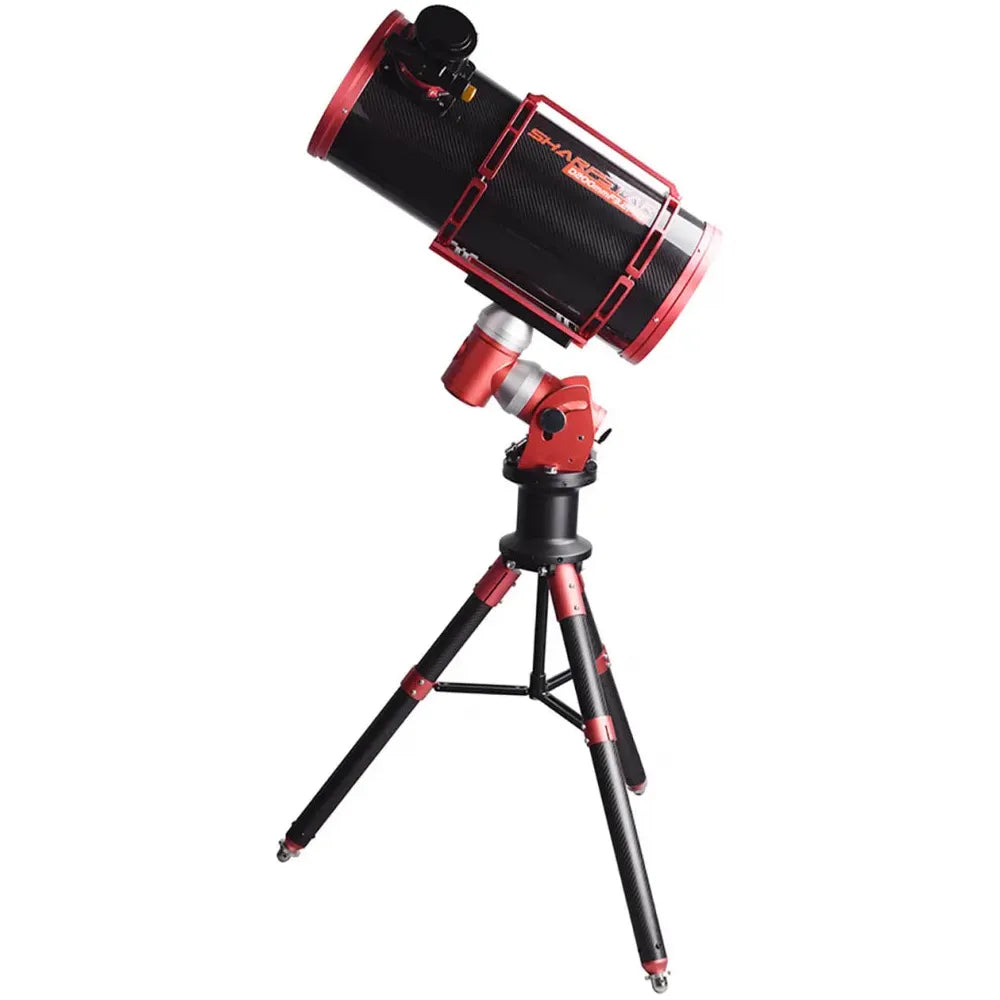

Pictures are for demonstration purposes only. Telescope and tripod are not included.

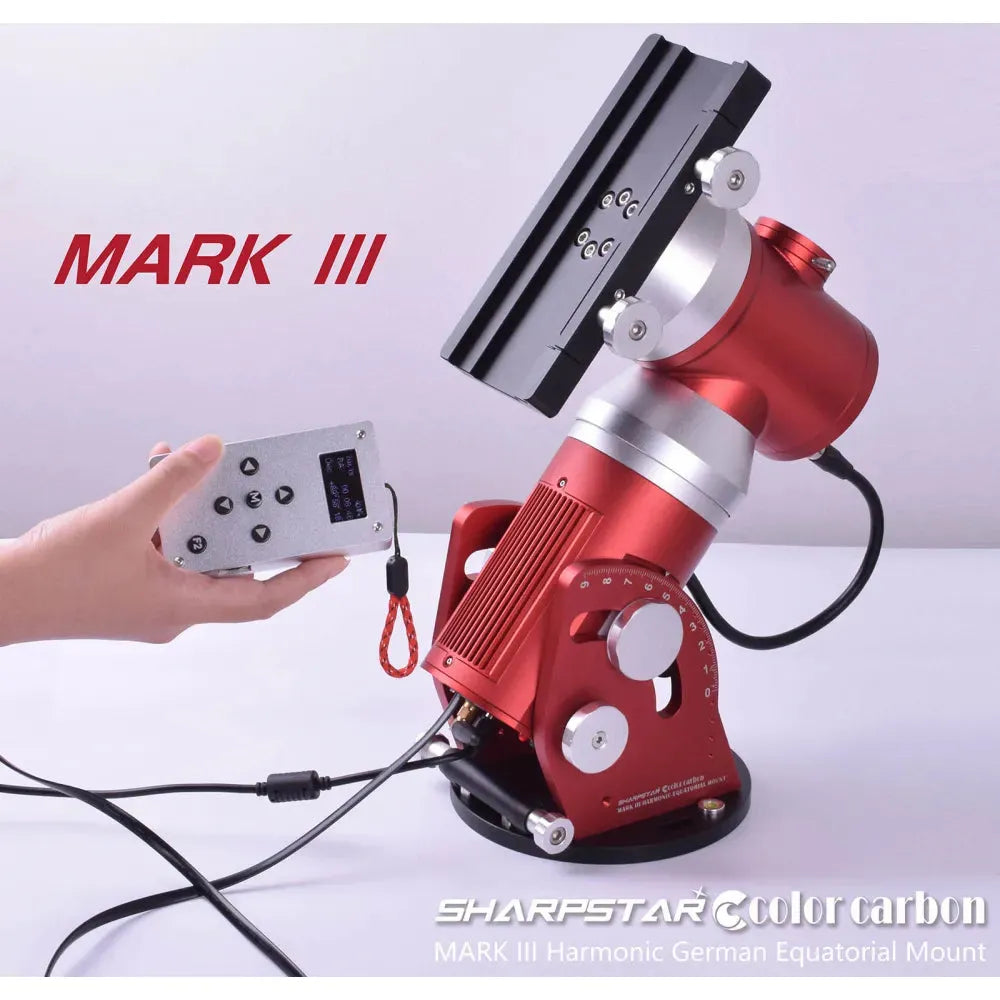

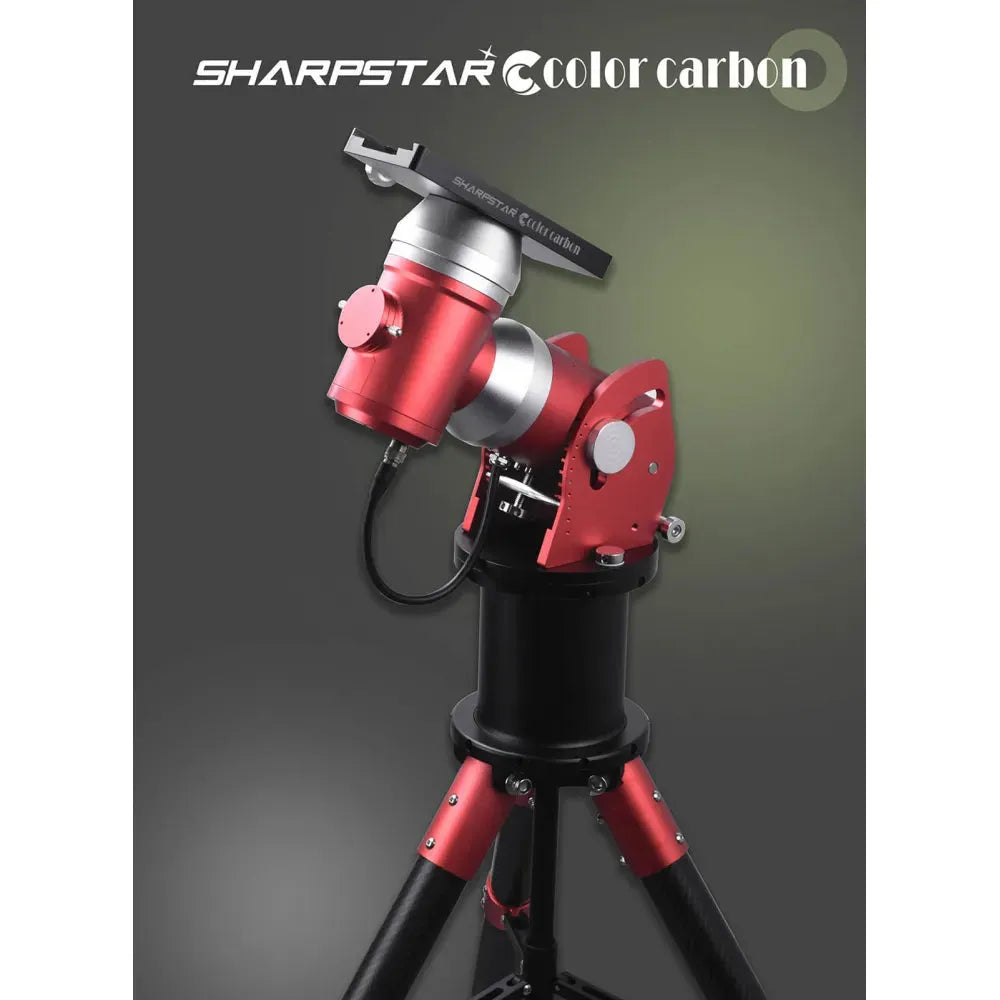

The Sharpstar Color Carbon Mark III mount is a lightweight and portable German equatorial mount with a delicate harmonic gear system. Despite its light weight of 7.95kg, the Mark III mount boasts outstanding payload capacity, quick dynamic response and accurate data-transmission and processing. It's a great option for both visual observation and astrophotography. It's a handy and functional helper along your journey to the exploration of the universe.





DOWNLOADS

Click here to visit the manufacturer's website where you can download a very detailed instruction manual and other applications and drivers.

Harmonic EQ Mount Downloads

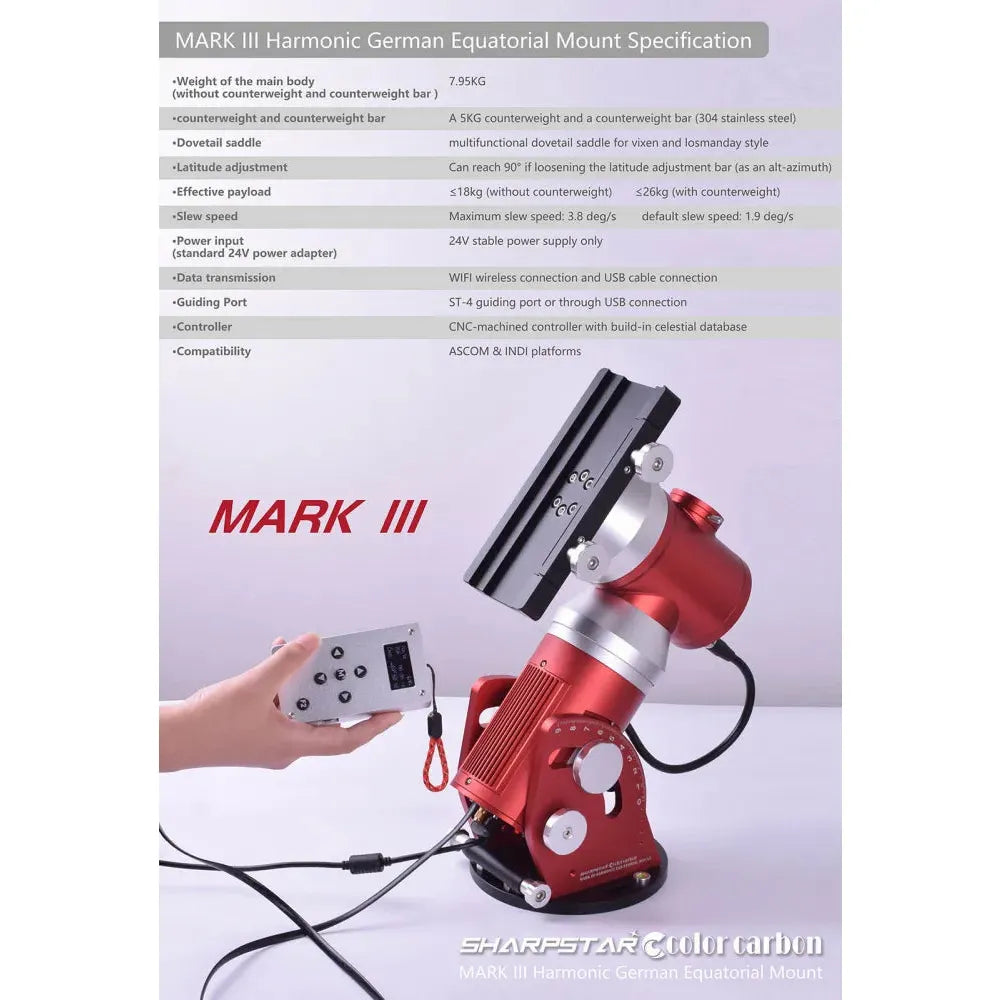

Mount Type

German Equatorial / Alt-Azimuth

Weight of the main body (without counterweight and counterweight bar)

7.95 kg

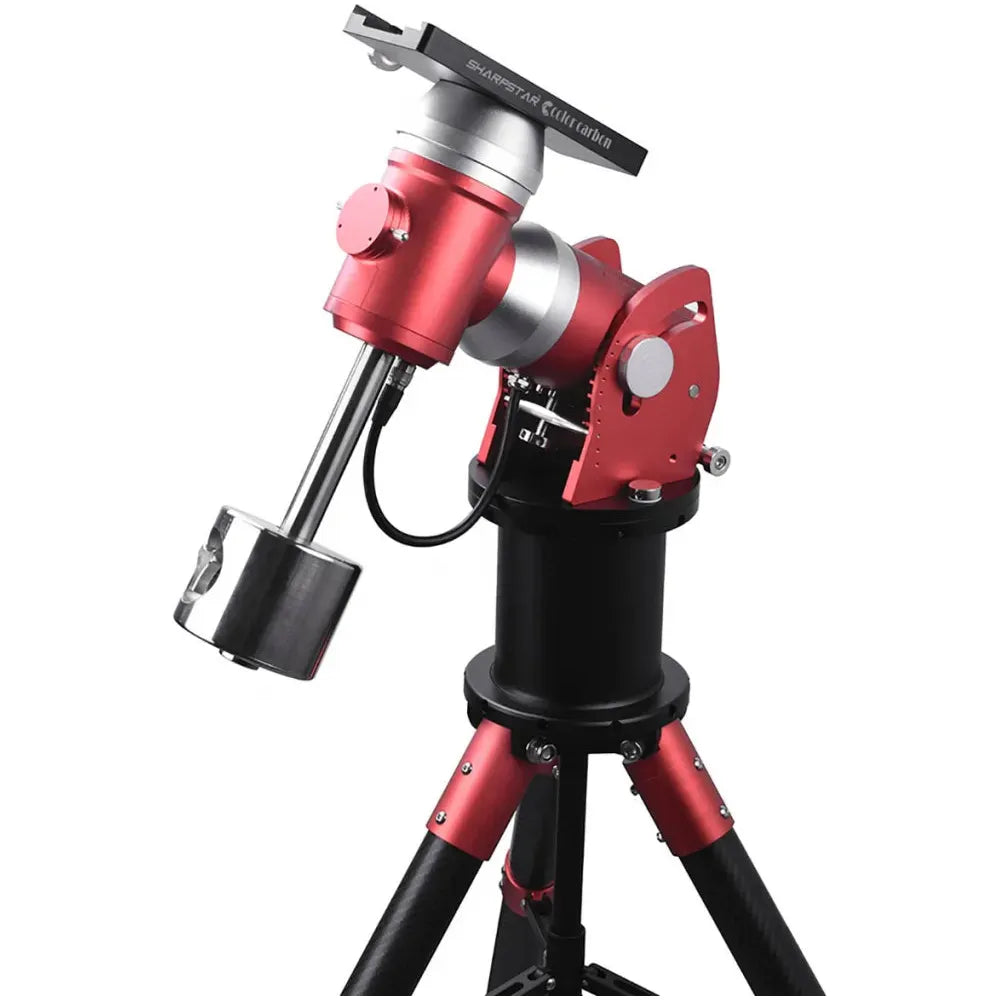

Counterweight and counterweight bar

5kg counterweight plus bar (304 stainless steel)

Dovetail Saddle (clamp)

Multifunctional dovetail saddle for Vixen and Losmandy style dovetail bars

Latitude Adjustment

Can reach 90 degree if loosening the latitude adjustment bar (as an Alt-Azimuth)

Effective Payload

max 18kg without counterweight and max 26kg with counterweight

Slew Speed

Max Slew Speed: 3.8 deg/sec; Default Slew Speed: 1.9 deg/sec

Power Input

24V stabilised power supply only

Data Transmission

WIFI wireless connection or USB connection

Guiding Port

ST-4 guiding port or through USB connection

Controller

CNC-machined controller with built-in celestial database

Compatibility

ASCOM and INDI platforms

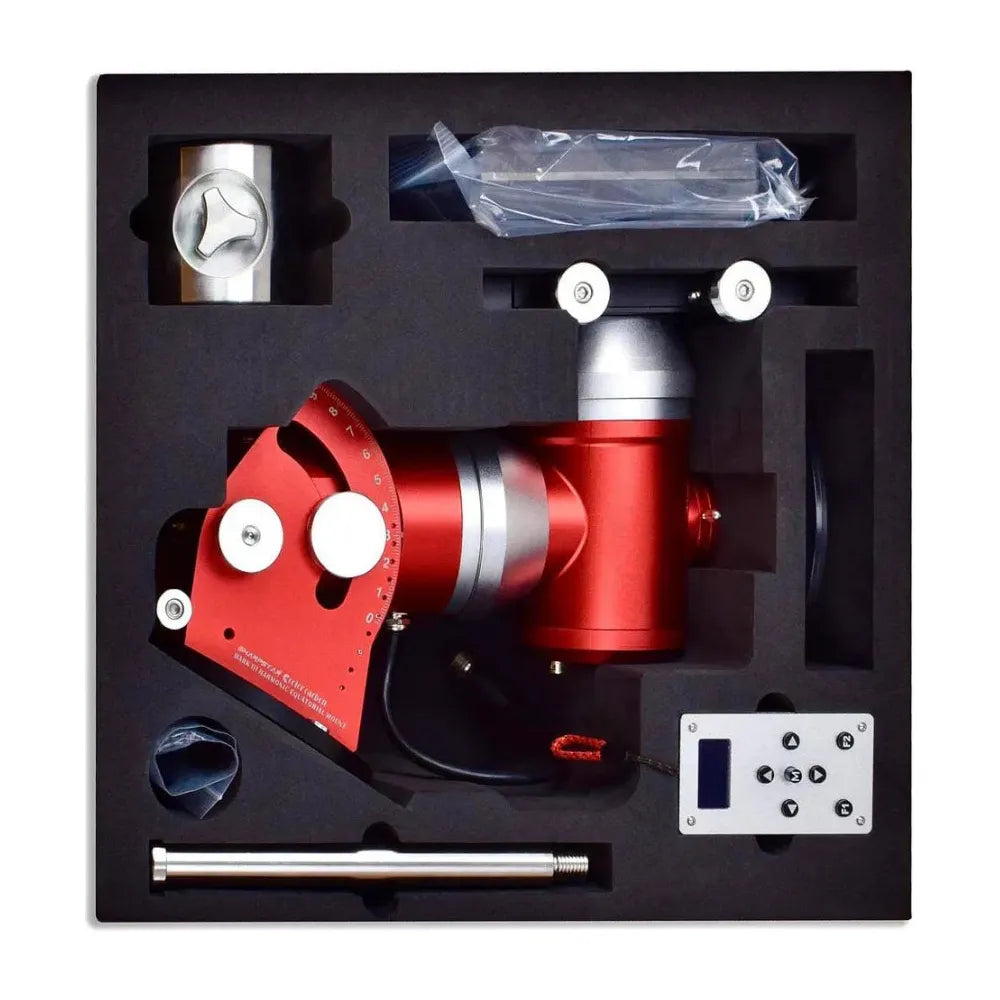

What's in the Box:
