  • How Do Binoculars Work?

    29,October ,2024 4 min read

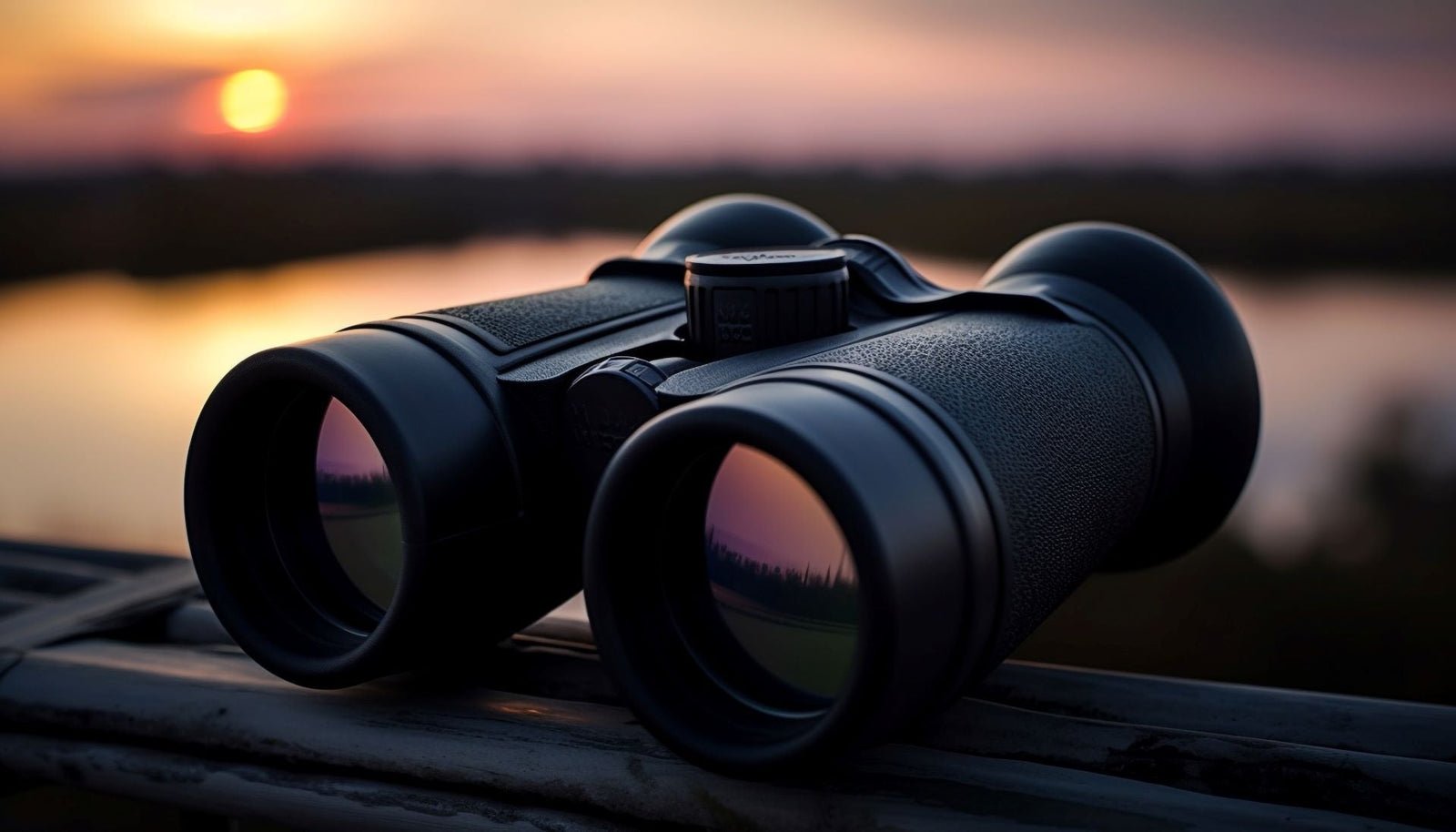

    Modern binoculars

    If you’ve ever wondered how binoculars turn distant objects into clear, close-up views, you’re not alone. Binoculars are impressive devices that use clever optical engineering to magnify what you’re looking at, making them essential tools for birdwatching, sports, and stargazing. But what exactly happens inside those lenses to bring distant scenes into sharp focus?
    This guide will take you through the inner workings of binoculars, from the basic components to the optical principles and techniques that make them so effective. Let’s dive in!


    Basic Components of Binoculars

    Firstly, let’s talk about components. Binoculars consist of several key components, each essential to the device’s overall functionality and viewing experience:

    Lenses

    The primary job of binocular lenses is to gather and focus light. The objective lens (the one facing the object) collects light from the scene and forms an image. The eyepiece lens, on the other end, magnifies this image, making it appear closer. Binoculars with larger objective lenses can gather more light, which results in brighter images, especially in low-light conditions.

    Prisms

    Prisms are responsible for correcting the orientation of the image. Without them, the image would appear upside down due to how lenses work. There are two main types of prisms in binoculars: Porro prisms and roof prisms. Porro prisms create a wider binocular body, while roof prisms allow for a more streamlined, compact design. Both types flip the image back to its correct orientation.

    Focusing Mechanism

    The focusing mechanism helps sharpen the image. Most binoculars have a central focusing wheel that adjusts both eyepieces simultaneously. Additionally, there’s a diopter adjustment ring on one eyepiece to compensate for any difference in vision between your eyes. For a step-by-step setup, our binoculars adjustment guide provides a detailed look at fine-tuning for clear, balanced vision.

    Optical Principles Behind Binoculars

    The operation of binoculars is based on some fascinating optical principles that work together to produce a clear and detailed view.

    Light Refraction

    Binoculars rely on the principle of refraction, where light bends as it passes through different materials, such as glass lenses. The objective lens gathers and bends light rays to form an image. Refraction is why a concave or convex lens can magnify objects while maintaining clarity, allowing you to see objects at a distance with greater detail.

    Image Formation

    As light enters the binoculars, it forms an inverted image. The prisms inside the binoculars correct this inversion, turning the image right-side up. This intricate process ensures that the viewer sees the scene in its natural orientation, contributing to an effortless, immersive experience.

    Depth Perception

    Binoculars enhance depth perception by allowing both eyes to view the same scene from slightly different angles, creating a 3D effect. This is particularly useful for activities like birdwatching, where depth perception helps in locating and tracking fast-moving objects in a natural setting.

    How Binoculars Enhance Vision

    Binoculars provide several enhancements that allow users to see details and clarity beyond what’s possible with the naked eye.

    Magnification

    Magnification is one of the key features of binoculars, expressed as the first number in specifications (e.g., 8x42). A magnification of 8x means the object appears eight times closer than it would to the naked eye. While higher magnification can offer closer views, it often reduces the field of view and can make the image more challenging to stabilise.

    Field of View

    The field of view refers to the width of the area visible through the binoculars, typically measured in metres at a distance of 1,000 metres. A wider field of view is beneficial for scanning larger areas, making it easier to locate moving objects. Compact binoculars usually offer a narrower field of view than larger models.

    Image Stabilisation

    Some advanced binoculars include image stabilisation technology, reducing the effects of hand movements and providing a steadier image. This feature is particularly useful for high-magnification binoculars, which can otherwise amplify hand shakiness. Image stabilisation makes for a more enjoyable viewing experience, especially during extended observation.

    Types of Binoculars and Their Mechanics

    Woman hiker with binoculars in nature



    Different types of binoculars use varying internal designs, which can affect their size, weight, and image quality:

    Porro Prisms

    Porro prism binoculars are known for their classic, wide design, with objective lenses set further apart. This design improves depth perception and provides a rich, three-dimensional view. Porro prism binoculars are generally more affordable and offer excellent image quality, making them popular among beginners and professionals alike.

    Roof Prisms

    Roof prism binoculars, on the other hand, are more streamlined and compact, with the lenses aligned in a straight line. This design is typically more durable and allows for a lighter, narrower body, making roof prism binoculars ideal for activities requiring portability, such as hiking and travel.

    Other Designs

    Beyond Porro and roof prisms, some specialised binoculars feature Galilean optics or mirror-based systems. These designs are less common in general use but are sometimes used for specific purposes, such as low-power opera glasses or high-power astronomical binoculars.

    Common Issues and How to Troubleshoot

    Binoculars are generally straightforward to use, but a few common issues can impact your viewing experience. Here’s how to troubleshoot these problems for a clearer view.

    Blurry Images

    If you experience blurry images, the most common causes are incorrect focus or dirty lenses. Start by cleaning the lenses with a soft, lint-free cloth and adjusting the central focus wheel. Use the diopter adjustment on one eyepiece if you’re still having trouble, ensuring both eyes are equally focused.

    Misalignment

    Misalignment, or “double vision,” can occur if the binoculars are dropped or mishandled. Misaligned binoculars cause each eye to see a slightly different image, leading to eyestrain. Professional servicing is often required to correct this issue, as realigning the optics is a delicate process.

    Focusing Problems

    If you’re unable to achieve a sharp focus, it may be due to an incorrectly set diopter adjustment. Check that your diopter is set according to your eyesight, as this will help balance focus between your eyes. For detailed instructions, you can refer to our binoculars adjustment guide, which explains how to optimise binoculars for individual use.

    Final Thoughts

    So there you have it - whether you’re an avid birdwatcher, sports enthusiast, or simply enjoy exploring nature, a well-maintained pair of binoculars can greatly enrich your experience.

    Ready to get started? If you’re not sure where to get your own pair, feel free to browse our selection of top quality binoculars in the UK, with prices to suit all budgets and models to suit all experience levels.
